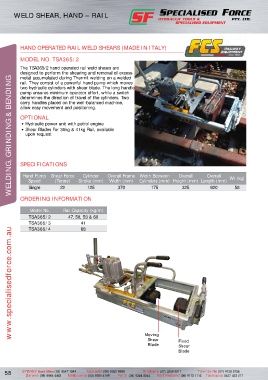

Page 68 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

WELD SHEAR, HAND – RAIL – FCS
WELD SHEAR, HAND – RAIL

HAND OPERATED RAIL WELD SHEARS (MADE IN ITALY)

MODEL NO. TSA365/2

The TsA365/2 hand operated rail weld shears are
designed to perform the shearing and removal of excess
metal accumulated during Thermit welding on a welded
WELDING, GRINDING & BENDING
rail. They consist of a powerful hand pump which moves
two hydraulic cylinders with shear blade. The long handle
pump ensures minimum operator effort, while a switch
determines the direction of travel of the cylinders. Two
carry handles placed on the well-balanced machine,
allow easy movement and positioning.

OPTIONAL
• Hydraulic power unit with petrol engine
• shear Blades For 36kg & 41kg Rail, available
upon request

SPECIFICATIONS

Hand Pump shear Force Cylinder Overall Frame Width Between Overall Overall
speed (Tonne) stroke (mm) Width (mm) Cylinders (mm) Height (mm) Length (mm) Wt (kg)
single 22 125 370 175 325 920 58

ORDERING INFORMATION

Model No. Rail Capacity (kg/m)
TSA365/2 47, 50, 53 & 60
TSA365/3 41
TSA365/4 68
www.specialisedforce.com.au

Moving
Shear Fixed
Blade Shear
Blade
