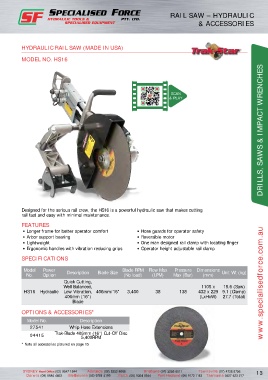

Page 23 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

RAIL SAW – HYDRAULIC & ACCESSORIES – TRAK-STAR
RAIL SAW – HYDRAULIC
& ACCESSORIES

HYDRAULIC RAIL SAW (MADE IN USA)

MODEL NO. HS16

SCAN
& PLAY DRILLS, SAWS & IMPACT WRENCHES

Designed for the serious rail crew, the Hs16 is a powerful hydraulic saw that makes cutting
rail fast and easy with minimal maintenance.
FEATURES
• Longer frame for better operator comfort • Hose guards for operator safety
• Arbor support bearing • Reversible motor
• Lightweight • One man designed rail clamp with locating finger
• Ergonomic handles with vibration reducing grips • Operator height adjustable rail clamp
SPECIFICATIONS

Model Power Description Blade size Blade RPM Flow Max Pressure Dimensions Unit Wt (kg)
No. Option (No load) (LPM) Max (Bar) (mm)
quick Cutting, www.specialisedforce.com.au
Well Balanced, 1105 x 18.6 (saw)
HS16 Hydraulic Low vibration, 406mm/16” 3,400 38 138 432 x 229 9.1 (Clamp)
406mm (16”) (LxHxW) 27.7 (Total)
Blade
OPTIONS & ACCESSORIES*

Model No. Description
27541 Whip Hose Extensions
04415 Trak-Blade 406mm (16”) Cut-Off Disc
5,400RPM
* Note all accessories pictured on page 15
