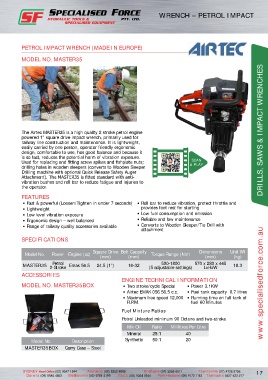

Page 27 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

WRENCH – PETROL IMPACT –AIRTEC
WRENCH – PETROL IMPACT

PETROL IMPACT WRENCH (MADE IN EUROPE)

MODEL NO. MASTER35

The Airtec MAsTER35 is a high quality 2 stroke petrol engine DRILLS, SAWS & IMPACT WRENCHES
powered 1” square drive impact wrench, primarily used for
railway line construction and maintenance. It is lightweight,
easily carried by one person, operator friendly ergonomic
design, comfortable to use, has good balance and because it
is so fast, reduces the potential harm of vibration exposure.
SCAN
Used for replacing and fitting screw spikes and fishplate nuts; & PLAY
drilling holes in wooden sleepers (converts to Wooden sleeper
Drilling machine with optional quick Release safety Auger
Attachment). The MASTER35 is fitted standard with anti-
vibration bushes and roll bar to reduce fatigue and injuries to
the operator.

FEATURES
• Fast & powerful (Loosen/Tighten in under 7 seconds) • Roll bar to reduce vibration, protect throttle and
• Lightweight provides foot rest for starting
• Low level vibration exposure • Low fuel consumption and emission
• Ergonomic design – well balanced • Reliable and low maintenance
• Range of railway quality accessories available • Converts to Wooden sleeper/Tie Drill with
attachment
SPECIFICATIONS

Model No. Power Engine (cc) square Drive Bolt Capacity Torque Range (Nm) Dimensions Unit Wt
(mm)
(mm)
(mm)
(kg)
500-1800
Petrol
MASTER35 2-stroke Emak 56.5 24.5 (1”) 16-32 (5 adjustable settings) 570 x 280 x 445 18.3
LxHxW
ACCESSORIES
ENGINE TECHNICAL INFORMATION
MODEL NO. MASTER35BOX • Two stroke/cycle special • Power 3.1kW www.specialisedforce.com.au
• Airtec EMAk 056 56.5 c.c. • Fuel tank capacity 0.7 litres
• Maximum free speed 12,000 • Running time on full tank of
R.P.M. fuel 60 Minutes
Fuel Mixture Ratios

Petrol Unleaded minimum 90 Octane and two-stroke
Mix Oil Ratio Millilitres Per Litre
Mineral 25:1 40
Model No. Description synthetic 50:1 20
MASTER35BOX Carry Case – steel
