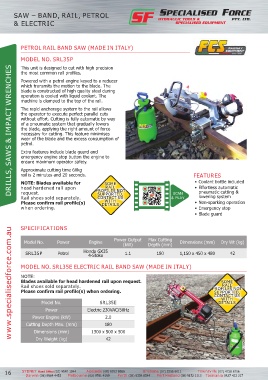

Page 26 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

SAW – BAND, RAIL, PETROL & ELECTRIC – FCS
SAW – BAND, RAIL, PETROL
& ELECTRIC

PETROL RAIL BAND SAW (MADE IN ITALY)

MODEL NO. SRL35P

DRILLS, SAWS & IMPACT WRENCHES
This unit is designed to cut with high precision
the most common rail profiles.
Powered with a petrol engine keyed to a reducer
which transmits the motion to the blade. The
blade is constructed of high quality steel during
operation is cooled with liquid coolant. The
machine is clamped to the top of the rail.
The rapid anchorage system to the rail allows
the operator to execute perfect parallel cuts
without effort. Cutting is fully automatic by way
of a pneumatic system that gradually lowers
the blade, applying the right amount of force
necessary for cutting. This feature minimises
wear of the blade and the excess consumption of
petrol.
Extra features include blade guard and
emergency engine stop button the engine to
ensure maximum operator safety.
Approximate cutting time 60kg
rail is 2 minutes and 20 seconds. FEATURES
nOTE: Blades available for SOME • Coolant bottle included
RAIL
head hardened rail upon PROFILES NOT • Effortless automatic
request. SUPPORTED, SCAN pneumatic cutting &
Rail shoes sold separately. CONTACT US & PLAY lowering system
WITH
Please confirm rail profile(s) DETAILS • Non-sparking operation
when ordering. • Emergency stop
• Blade guard

SPECIFICATIONS
www.specialisedforce.com.au

Power Output Max Cutting
Model No. Power Engine Dimensions (mm) Dry Wt (kg)
(kW) Depth (mm)
SRL35P Petrol Honda GX35 1.1 180 1,150 x 450 x 480 42
4-stoke

MODEL NO. SRL35E ELECTRIC RAIL BAND SAW (MADE IN ITALY)

NOTE:
Blades available for head hardened rail upon request. SOME
RAIL
Rail shoes sold separately. PROFILES NOT
Please confirm rail profile(s) when ordering. SUPPORTED,
CONTACT US
WITH
Model No. SRL35E DETAILS
Power Electric 230vAC/50Hz
Power Engine (kW) 2.0
Cutting Depth Max. (mm) 180
Dimensions (mm) 1300 x 500 x 500
Dry Weight (kg) 42
