WRENCH – IMPACT, HYDRAULIC
       WRENCH – IMPACT, HYDRAULIC

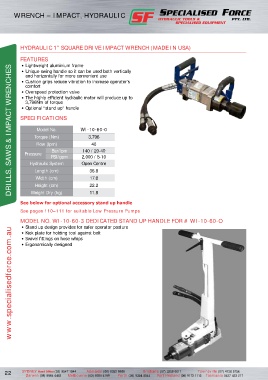

          HYDRAULIC 1” SQUARE DRIVE IMPACT WRENCH (MADE IN USA)

          FEATURES
           • Lightweight aluminium frame
      DRILLS, SAWS & IMPACT WRENCHES
           • Unique swing handle so it can be used both vertically
            and horizontally for more convenient use
           • Cushion grips reduce vibration to increase operator’s
            comfort
           • Overspeed protection valve
           • The highly efficient hydraulic motor will produce up to
            3,796Nm of torque
           • Optional “stand up” handle

          SPECIFICATIONS

                 Model No.           WI-10-60-0
                Torque (Nm)             3,796
                 Flow (lpm)               40
                        Bar/lpm       140 / 20-40
            Pressure
                        PsI/gpm      2,000 / 5-10
              Hydraulic system       Open Centre
                Length (cm)              36.8
                 Width (cm)              17.8
                 Height (cm)             22.2
               Weight Dry (kg)           11.8

          See below for optional accessory stand up handle

          See pages 110–111 for suitable Low Pressure Pumps
          MODEL NO. WI-10-60-3 DEDICATED STAND UP HANDLE FOR # WI-10-60-O
           • stand up design provides for safer operator posture
      www.specialisedforce.com.au
           • kick plate for holding tool against bolt
           • Swivel fittings on hose whips
           • Ergonomically designed
