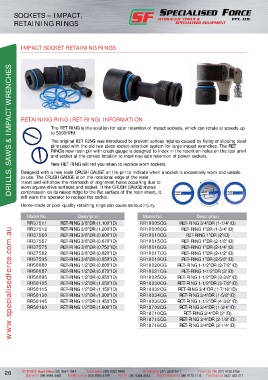

Page 36 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

SOCKETS – IMPACT, RETAINING RINGS
SOCKETS – IMPACT,
RETAINING RINGS

IMPACT SOCKET RETAINING RINGS

DRILLS, SAWS & IMPACT WRENCHES

RETAINING RING (RET RING) INFORMATION

The RET RING is the solution for safer retention of impact sockets, which can rotate at speeds up
to 5000RPM.
The original RET RING was introduced to prevent serious injuries caused by flying or slipping steel
pins used with the old two piece socket retention system for large impact wrenches. The RET
RING’s new resin pin with crush gauge is designed to index in the retention holes on the tool anvil
and socket at the correct location to maximise safe retention of power sockets.

New RET RING will tell you when to replace worn sockets.
Designed with a new resin CRUsH GAUGE on the pin to indicate when a socket is excessively worn and unsafe
to use. The CRUsH GAUGE is on the rotational edge of the resin
insert and will show the mismatch of alignment holes occurring due to
worn square drive surfaces and socket. If the CRUsH GAUGE shows
compression on its raised ridge to the flat surface of the resin insert, it
will warn the operator to replace the socket.
Home-made or poor quality retaining rings can cause serious injury.

Model No. Description Model No. Description
RR37511 RET-RING 3/8”DR (1.100”ID) RR10005CG RET-RING 3/4”DR (1-1/4”ID)
RR37512 RET-RING 3/8”DR (1.200”ID) RR10008CG RET-RING 1”DR (1-3/4”ID)
www.specialisedforce.com.au
RR37560 RET-RING 3/8”DR (0.600”ID) RR10010CG RET-RING 1”DR (2”ID)
RR37567 RET-RING 3/8”DR (0.670”ID) RR10015CG RET-RING 1”DR (2-1/8”ID)
RR37575 RET-RING 3/8”DR (0.750”ID) RR10016CG RET-RING 1”DR (2-1/4”ID)
RR37582 RET-RING 3/8”DR (0.820”ID) RR10017CG RET-RING 1”DR (2-1/2”ID)
RR37595 RET-RING 3/8”DR (0.950”ID) RR10019CG RET-RING 1”DR (2-5/8”ID)
RR50080 RET-RING 1/2”DR (0.800”ID) RR10020CG RET-RING 1-1/2”DR (2-7/8”ID)
RR50087 RET-RING 1/2”DR (0.870”ID) RR10021CG RET-RING 1-1/2”DR (3”ID)
RR50095 RET-RING 1/2”DR (0.950”ID) RR10025CG RET-RING 1-1/2”DR (3-3/8”ID)
RR50105 RET-RING 1/2”DR (1.050”ID) RR10030CG RET-RING 1-1/2”DR (3-7/8”ID)
RR50115 RET-RING 1/2”DR (1.150”ID) RR10032CG RET-RING 3/4”DR (1-7/16”ID)
RR50130 RET-RING 1/2”DR (1.300”ID) RR10034CG RET-RING 3/4”DR (1-5/8”ID)
RR50145 RET-RING 1/2”DR (1.450”ID) RR10035CG RET-RING 1-1/2”DR (4-3/8”ID)
RR50160 RET-RING 1/2”DR (1.600”ID) RR18708CG RET-RING 3/4”DR (1-3/4”ID)
RR18710CG RET-RING 3/4”DR (2”ID)
RR18715CG RET-RING 3/4”DR (2-1/8”ID)
RR18716CG RET-RING 3/4”DR (2-1/4”ID)
