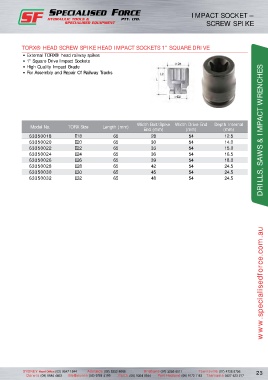

Page 33 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18
P. 33

IMPACT SOCKET – SCREW SPIKE
                                                                                      IMPACT SOCKET –
                                                                                             SCREW SPIKE





           TORX® HEAD SCREW SPIKE HEAD IMPACT SOCKETS 1” SQUARE DRIVE
           • External TORX® head railway spikes
           • 1” square Drive Impact sockets
           • High quality Impact Grade
           • For Assembly and Repair Of Railway Tracks













               Model No.       TORX size       Length (mm)    Width Bolt/spike  Width Drive End   Depth Internal      DRILLS, SAWS & IMPACT WRENCHES
                                                                                   (mm)
                                                                                                    (mm)
                                                                 End (mm)
              63350018            E18              65               28               54              12.5
              63350020            E20              65               30               54              14.0
              63350022            E22              65               33               54              15.0
              63350024            E24              65               36               54              16.5
              63350026            E26              65               39               54              18.0
              63350028            E28              65               42               54              24.5
              63350030            E30              65               45               54              24.5
              63350032            E32              65               48               54              24.5
