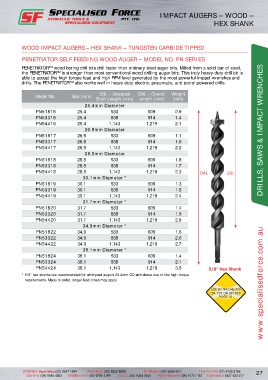

Page 37 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

IMPACT AUGERS – WOOD – HEX SHANK
IMPACT AUGERS – WOOD –
HEX SHANK

WOOD IMPACT AUGERS – HEX SHANK – TUNGSTEN CARBIDE TIPPED

PENETRATOR SELF FEEDING WOOD AUGER – MODEL NO. PN SERIES

PENETRATOR™ wood boring drill bits drill faster than ordinary steel auger bits. Milled from a solid bar of steel,
the PENETRATOR™ is stronger than most conventional wood drilling auger bits. This truly heavy-duty drill bit is
able to accept the high torque load and high RPM level generated by the most powerful impact wrenches and
drills. The PENETRATOR™ also works well in heavy-duty electric, pneumatic, and petrol powered drills.

UsL – Universal OAL – Overall Weight
Model No. size (mm)
shaft Length (mm) Length (mm) (mm)
25.4mm Diameter
PN51816 25.4 533 609 0.9
PN53316 25.4 838 914 1.4
PN54416 25.4 1,143 1,219 2.1
26.9mm Diameter DRILLS, SAWS & IMPACT WRENCHES
PN51817 26.9 533 609 1.1
PN53317 26.9 838 914 1.6
PN54417 26.9 1,143 1,219 2.2
28.5mm Diameter
PN51818 28.5 533 609 1.6
PN53318 28.5 838 914 1.7
PN54418 28.5 1,143 1,219 2.3 OAL USL
30.1mm Diameter *
PN51819 30.1 533 609 1.3
PN53319 30.1 838 914 1.8
PN54419 30.1 1,143 1,219 2.4
31.7mm Diameter *
PN51820 31.7 533 609 1.4
PN53320 31.7 838 914 1.9
PN54420 31.7 1,143 1,219 2.5
34.9mm Diameter *
PN51822 34.9 533 609 1.6
PN53322 34.9 838 914 2.0
PN54422 34.9 1,143 1,219 2.7
38.1mm Diameter *
PN51824 38.1 533 609 1.4
PN53324 38.1 838 914 2.1
PN54424 38.1 1,143 1,219 3.5 5/8” Hex Shank
* 5/8” hex shanks are recommended for all impact augers 25.4mm OD and above due to the high torque
requirements. Made to order, longer lead times may apply www.specialisedforce.com.au

USE WITH CHUCKS
QR-720 OR QR-820
