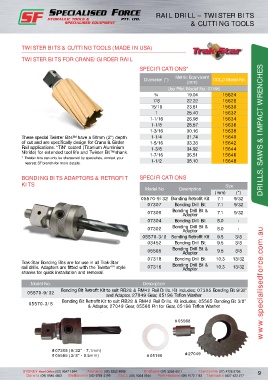

Page 19 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

RAIL DRILL – TWISTER BITS & CUTTING TOOLS – TRAK-STAR
RAIL DRILL – TWISTER BITS
& CUTTING TOOLS

TWISTER BITS & CUTTING TOOLS (MADE IN USA)

TWISTER BITS FOR CRANE/GIRDER RAIL

SPECIFICATIONS*
Metric Equivalent
Diameter (“) (mm) GOLD Model No.

Use Pilot Model No. 07496
¾ 19.04 15624
7/8 22.22 15628
15/16 23.81 15630
1 25.40 15632
1-1/16 26.98 15634
1-1/8 28.57 15636
1-3/16 30.16 15638 DRILLS, SAWS & IMPACT WRENCHES
These special Twister Bits™ have a 50mm (2”) depth 1-1/4 31.74 15640
of cut and are specifically design for Crane & Girder 1-5/16 33.33 15642
Rail applications. “TiN” coated (Titanium Aluminium 1-3/8 34.92 15644
Nitride) for extended tool life and Twister Bit™ shank. 1-7/16 36.51 15646
* Twister bits can only be sharpened by specialists, contact your
nearest sF branch for more details. 1-1/2 38.10 15648

BONDING BITS ADAPTORS & RETROFIT SPECIFICATIONS
KITS size
Model No Description
(mm) (“)
05570-9/32 Bonding Retrofit Kit 7.1 9/32
07307 Bonding Drill Bit 7.1 9/32
07305 Bonding Drill Bit & 7.1 9/32
Adaptor
07304 Bonding Drill Bit 8.0 -
07302 Bonding Drill Bit & 8.0 -
Adaptor
05570-3/8 Bonding Retrofit Kit 9.5 3/8
03452 Bonding Drill Bit 9.5 3/8
05565 Bonding Drill Bit & 9.5 3/8
Adaptor
07318 Bonding Drill Bit 10.3 13/32
Trak-star Bonding Bits are for use in all Trak-star Bonding Drill Bit &
rail drills. Adapters are fitted with the Twister™ style 07316 Adaptor 10.3 13/32
shanks for quick installation and removal.

Model No. Description www.specialisedforce.com.au
05570-9/32 Bonding Bit Retrofit Kit to suit RB28 & RM42 Rail Drills. kit includes; 07305 Bonding Bit 9/32”
and Adaptor, 27049 Gear, 05196 Teflon Washer
05570-3/8 Bonding Bit Retrofit Kit to suit RB28 & RM42 Rail Drills. kit includes; 05565 Bonding Bit 3/8”
& Adaptor, 27049 Gear, 05568 Pin for Gear, 05196 Teflon Washer

#05568

#07305 (9/32” - 7.1mm)
#05565 (3/8” - 9.5mm) #05196 #27049
