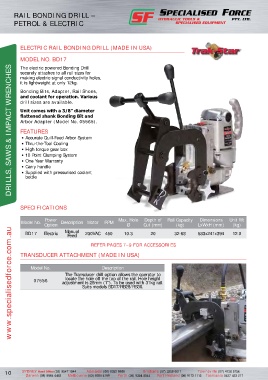

Page 20 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

RAIL BONDING DRILL – PETROL & ELECTRIC – TRAK-STAR
RAIL BONDING DRILL –
PETROL & ELECTRIC

ELECTRIC RAIL BONDING DRILL (MADE IN USA)

MODEL NO. BD17

DRILLS, SAWS & IMPACT WRENCHES
The electric powered Bonding Drill
securely attaches to all rail sizes for
making electric signal conductivity holes,
it is lightweight at only 12kg.
Bonding Bits, Adapter, Rail Shoes,
and coolant for operation. Various
drill sizes are available.

Unit comes with a 3/8” diameter
flattened shank Bonding Bit and
Arbor Adapter (Model No. 05565).
FEATURES
• Accurate quill-Feed Arbor system
• Thru-the-Tool Cooling
• High torque gear box
• 10 Point Clamping system
• One Year Warranty
• Carry handle
• supplied with pressurised coolant
bottle

SPECIFICATIONS

Power Max. Hole Depth of Rail Capacity Dimensions Unit Wt
Model No. Description Motor RPM
Option Ø Cut (mm) (kg) LxWxH (mm) (kg)
www.specialisedforce.com.au
BD17 Electric Manual 230vAC 450 10.3 20 32-68 533x241x394 12.0
Feed
REFER PAGES 7–9 FOR ACCESSORIES

TRANSDUCER ATTACHMENT (MADE IN USA)

Model No. Description
The Transducer drill option allows the operator to
locate the hole off the top of the rail. Hole height
07556 adjustment is 25mm (1”). To be used with 31kg rail.
suits models BD17/RB28/RB30.
