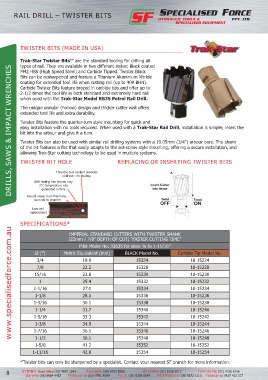

Page 18 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

RAIL DRILL – TWISTER BITS – TRAk-STAR
RAIL DRILL – TWISTER BITS

TWISTER BITS (MADE IN USA)

Trak-Star Twister Bits™ are the standard tooling for drilling all
types of rail. They are available in two different styles: Black coated
DRILLS, SAWS & IMPACT WRENCHES
M42 Hss (High speed steel) and Carbide Tipped. Twister Black
Bits can be resharpened and feature a Titanium Aluminium Nitride
coating for extended tool life when cutting rail (up to 400 BHN).
Carbide Twister Bits feature brazed in carbide tips and offer up to
2-1/2 times the tool life in both standard and extremely hard rail
when used with the Trak-Star Model RB35 Petrol Rail Drill.

The unique annular (hollow) design and thicker cutter wall offers
extended tool life and extra durability.

Twister Bits feature the quarter-turn style mounting for quick and
easy installation with no tools required. When used with a Trak-Star Rail Drill, installation is simple; insert the
bit into the arbour and give it a turn.
Twister Bits can also be used with similar rail drilling systems with a 19.05mm (3/4”) arbour bore. The shank
of the bit features a flat that easily adapts to the set-screw style mounting, offering a secure installation, and
allowing Trak-star cutting technology to be used in multiple systems.
TWISTER BIT HOLE REPLACINg OR INSERTINg TWISTER BITS

Thru-the-tool coolant provides
cold-cut - no blueing
AAR testing has proven only
2°C temperature rise
generated in hole
Round, clean, burr-free hole...
no need to chamfer

Less rail
replacement

SPECIFICATIONS*
www.specialisedforce.com.au
IMPERIAL sTANDARD CUTTERs WITH TWIsTER sHANk
(22mm / 7/8” DEPTH OF CUT) “FAsTER CUTTING TIME”
Pilot Model No. 03635 for sizes ¾ to 1-11/16”
Ø (”) Metric Equivalent (mm) BLACk Model No. Carbide Tip Model No.
3/4 19.0 15324 18-15224
7/8 22.2 15328 18-15228
15/16 23.8 15330 18-15230
1 25.4 15332 18-15232
1-1/16 27.0 15334 18-15234
1-1/8 28.5 15336 18-15236
1-3/16 30.1 15338 18-15238
1-1/4 31.7 15340 18-15240
1-5/16 33.3 15342 18-15242
1-3/8 34.9 15344 18-15244
1-7/16 36.5 15346 18-15246
1-1/2 38.1 15348 18-15248
1-5/8 41.2 15352 18-15252
1-11/16 42.8 15354 18-15254

*Twister bits can only be sharpened by a specialist. Contact your nearest sF branch for more information.
