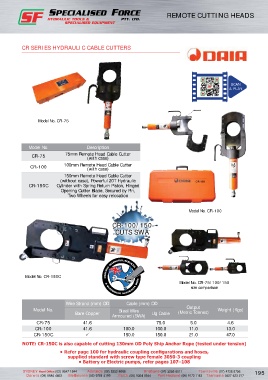

Page 205 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

REMOTE CUTTING HEADS – DAIA
REMOTE CUTTING HEADS

CR SERIES HYDRAULIC CABLE CUTTERS

SCAN
& PLAY

Model No. CR-75

Model No. Description
CR-75 75mm Remote Head Cable Cutter
(with case)
CR-100 100mm Remote Head Cable Cutter
(with case)
150mm Remote Head Cable Cutter
(without case), Powerful 20T Hydraulic
CR-150C Cylinder with spring Return Piston, Hinged
Opening Cutter Blade, secured by Pin,
Two Wheels for easy relocation

Model No. CR-100

CR-100/150
CUTS SWA

PROUDLY MARKETED, SERVICED
Model No. CR-150C
& SUPPORTED AUSTRALIA WIDE Model No. CR-75/100/150
size comparison

Wire strand (mm) OD Cable (mm) OD
Model No. steel Wire Output Weight (kgs)
Bare Copper Armoured (sWA) Ug Cable (Metric Tonnes)
CR-75 41.6 75.0 5.0 4.6
CR-100 41.6 100.0 100.0 11.0 13.0
CR-150C P 150.0 150.0 21.0 47.0
NOTE: CR-150C is also capable of cutting 130mm OD Poly Ship Anchor Rope (tested under tension)
• Refer page 100 for hydraulic coupling configurations and hoses,
supplied standard with screw type female 3050-3 coupling
• Battery or Electric pumps, refer pages 107–108
