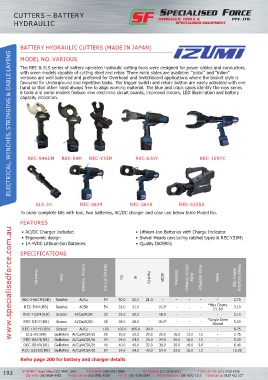

Page 202 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

CUTTERS – BATTERY HYDRAULIC –IzUMI
CUTTERS – BATTERY
HYDRAULIC

BATTERY HYDRAULIC CUTTERS (MADE IN JAPAN)
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
MODEL NO. VARIOUS

The REC & SLS series of battery operated hydraulic cutting tools were designed for power cables and conductors,
with some models capable of cutting steel and rebar. Three main styles are available: “pistol” and “inline”
versions are well balanced and preferred for Overhead and Switchboard applications where the basket style is
favoured for Underground and repetitive tasks. The trigger switch and return button are easily activated with one
hand so that other hand always free to align working material. The blue and black cases identify the new series
6 tools and some models feature new electronic circuit boards, improved motors, LED illumination and battery
capacity indication.

REC-54ACM REC-54M REC-Y33M REC-630Y REC-105YC

SLS-20 REC-S624 REC-S640 REC-S3550
To order complete kits with tool, two batteries, AC/DC charger and case use below table Model No.

fEATURES
www.specialisedforce.com.au
• AC/DC Charger Included • Lithium-Ion Batteries with Charge Indicator
• Ergonomic design • Swivel Heads (excluding ratchet types & REC-Y33M)
• 14.4VDC Lithium-Ion Batteries • quality ISO9001
SPECIfICATIONS

Al
Cu
Style
Hard Cu
Model No.
Cutting Material
Opening Ø (mm)
2.75
-
-
-
-
REC-54ACM(BB) Ratchet Al/Cu 54 50.0 50.0 21.0 ACSR Steel/Guy (400 to 500Mpa) - ReBar Rebar (650Mpa) Notes Battery (kg) Weight Including
REC-54M(BB) Ratchet ACSR 54 21.0 31.0 - 14.3* - - - *Max Cherry 3.10
7/1.60
REC-Y33M(BB) Scissor Al/Cu/ACSR 32 32.0 32.0 - 18.0 - - - - 3.10
REC-630Y(BB) Scissor Al/Cu/ACSR 28 28.0 28.0 - 19.0* - - - *Single Steel 5.00
Strand
REC-105YC(BB) Scissor Al/Cu 105 105.0 105.0 90.0 - - - - 8.75
SLS-20(BB) Guillotine Al/Cu/ACSR/St 20 20.0 20.0 20.0 20.0 16.0 12.0 10 - 2.75
REC-S624(BB) Guillotine Al/Cu/ACSR/St 24 24.0 24.0 20.0 24.0 20.0 16.0 12 - 5.00
REC-S640(BB) Guillotine Al/Cu/ACSR/St 40 40.0 40.0 32.0 38.0 20.0 16.0 9.6 - 6.40
REC-S3550(BB) Guillotine Al/Cu/ACSR/St 54 54.0 54.0 40.0 54.0 22.0 16.0 13 - 10.00
Refer page 200 for battery and charger details
