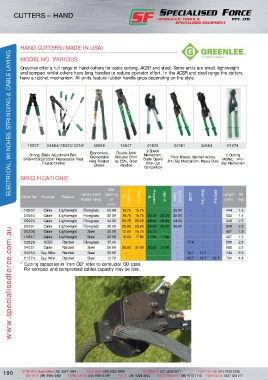

Page 200 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

CUTTERS – HAND – GREENLEE
CUTTERS – HAND

HAND CUTTERS (MADE IN USA)
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
MODEL NO. VARIOUS

Greenlee offer a full range of hand cutters for cable cutting, ACsR and steel. some units are small. lightweight
and compact whilst others have long handles to reduce operator effort. In the ACsR and steel range the cutters
have a ratchet mechanism. All units feature rubber handle grips depending on the style.

10507 24564/05923/22291 30208 12847 02826 34081 34084 01274
Economical, Double Joint 2 speed
strong, Blade Adjustment Bolt, Replaceable Reduces Effort Mechanism, Thick Blades, Ratchet Action, 2 Cutting
24564/05923/22291 Replaceable Heat Heat Treated by 25%, steel Blade Opens Anti-slip Mechanism, Heavy Duty Modes, , Anti-
Treated blades After Cut slip Mechanism
Blades Handles Completion
SPECIFICATIONS*

Jaw
Handle (with Opening Length Wt
Model No. Purpose Feature Cu Frequent Max Cu Al Frequent Max Al Cable Comms ACsR steel/Guy EHs Guy
Rubber Grip) Ø (mm) (kg)
(mm)
10507 Cable Lightweight Fibreglass 25.00 15.75 15.75 - - 25.00 - - - 444 1.3
24564 Cable Lightweight Fibreglass 32.00 15.75 15.75 20.25 20.25 32.00 - - - 533 1.4
05923 Cable Lightweight Fibreglass 44.00 20.25 20.25 28.80 28.80 44.00 - - - 648 2.5
22291 Cable Lightweight Fibreglass 38.00 25.65 25.65 28.80 28.80 38.00 - - - 800 2.8
www.specialisedforce.com.au
30208 Cable Lightweight steel 25.00 12.60 15.75 15.75 - - - - - 457 1.3
12847 Cable Lightweight steel 32.00 15.03 17.96 17.96 17.96 - - - - 457 1.5
02826 ACsR Ratchet Fibreglass 17.40 - - - - - 17.4 - - 508 2.8
34081 Cable Ratchet steel 50.00 28.80 37.00 28.80 37.00 - - - - 698 5.2
34084 Guy Wire Ratchet steel 30.00 - - - - - 12.7 12.7 - 743 5.5
01274 Guy Wire Ratchet steel 12.70 - - - - - 12.7 12.7 12.7 704 4.8
* Cutting capacities in “mm OD” refer to conductor OD sizes.
For compact and compressed cables capacity may be less.
