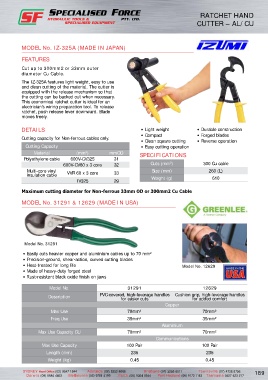

Page 199 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

RATCHET HAND CUTTER – AL/CU – IZUMI – GREENLEE
RATCHET HAND
CUTTER – AL/CU

MODEL No. IZ-325A (MADE IN JAPAN)

FEATURES

Cut up to 300mm2 or 33mm outer
diameter Cu Cable.
The IZ-325A features light weight, easy to use
and clean cutting of the material. The cutter is
equipped with the release mechanism so that
the cutting can be backed out when necessary.
This economical ratchet cutter is ideal for an
electrician’s wiring preparation tool. To release
ratchet, push release lever downward. Blade
moves freely.

DETAILS • Light weight • Durable construction
• Compact • Forged blades
Cutting capacity for Non-ferrous cables only.
• Clean square cutting • Reverse operation
Cutting Capacity • Easy cutting operation
Material (mm ) mmOD SPECIFICATIONS
2
Polyethylene cable 600v-Cv325 31
2
600v-Cv60 x 3 core 32 Cuts (mm ) 300 Cu cable
Multi-core vinyl size (mm) 260 (L)
insulation cable vvR 60 x 3 core 33 Weight (g) 610
Iv325 29

Maximum cutting diameter for Non-ferrous 33mm OD or 300mm2 Cu Cable

MODEL No. 31291 & 12629 (MADE IN USA)

Model No. 31291
• Easily cuts heavier copper and aluminium cables up to 70 mm²
• Precision-ground, shear-action, curved cutting blades
• Heat-treated for long life Model No. 12629
• Made of heavy-duty forged steel
• Rust-resistant black oxide finish on jaws

Model No. 31291 12629
Description PvC-covered, high-leverage handles Cushion grip, high-leverage handles
for easier cuts
for added comfort
Copper
Max Use 70mm² 70mm²
Freq Use 35mm² 35mm²
Aluminium
Max Use Capacity CU 70mm² 70mm²
Communications
Max Use Capacity 100 Pair 100 Pair
Length (mm) 235 235
Weight (kg) 0.45 0.45
