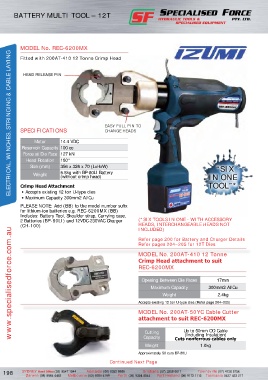

BATTERY MULTI TOOL – 12 TONNE – IZUMI
BATTERY MULTI TOOL – 12T

MODEL No. REC-6200MX
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
Fitted with 200AT-410 12 Tonne Crimp Head

HEAD RELEASE PIN

EASY PULL PIN TO
SPECIFICATIONS CHANGE HEADS

Motor 14.4 vDC
Reservoir Capacity 100 cc
Force at Die Face 127 kN
Head Rotation 180°
size (mm) 356 x 326 x 70 (LxHxW) “SIX

Weight 5.8kg with BP-80LI Battery IN ONE
(without crimp head)
Crimp Head Attachment TOOL”*
• Accepts existing 12 ton U-type dies
• Maximum Capacity 300mm2 Al/Cu
PLEASE NOTE: Add (BB) to the model number sufix
for lithium-ion batteries e.g. REC-6200MX (BB)
Includes: Battery Tool, shoulder strap, Carrying case,
2 Batteries (BP-80LI) and 12vDC-230vAC Charger (*SIX TOOLS IN ONE - WITH ACCESSORY
(CH-100) HEADS, INTERCHANGEABLE HEADS NOT
www.specialisedforce.com.au
INCLUDED)
Refer page 200 for Battery and Charger Details
Refer pages 204–205 for 12T Dies
MODEL No. 200AT-410 12 Tonne
Crimp Head attachment to suit
REC-6200MX

Opening Between Die Faces 17mm
Maximum Capacity 300mm2 Al/Cu
Weight 2.4kg
Accepts existing 12 ton U-type dies (Refer page 204–205)
MODEL No. 200AT-50YC Cable Cutter
attachment to suit REC-6200MX

Cutting Up to 50mm OD Cable
(Including Insulation)
Capacity Cuts nonferrous cables only
Weight 1.0kg
Approximately 50 cuts BP-80LI
Continued Next Page
