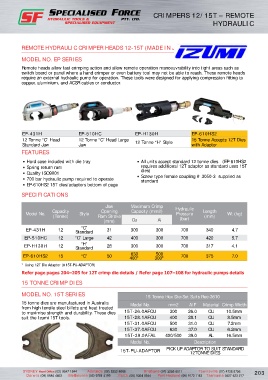

Page 213 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

CRIMPERS 12/15T – REMOTE HYDRAULIC – IZUMI
CRIMPERS 12/15T – REMOTE
HYDRAULIC

REMOTE HYDRAULIC CRIMPER HEADS 12-15T (MADE IN JAPAN)

MODEL NO. EP SERIES

Remote heads allow fast crimping action and allow remote operation manoeuvrability into tight areas such as
switch board or panel where a hand crimper or even battery tool may not be able to reach. These remote heads
require an external hydraulic pump for operation. These tools were designed for applying compression fitting to
copper, aluminium, and ACsR cables or conductor.

EP-431H EP-510HC EP-H130H EP-610HS2
12 Tonne “C” Head 12 Tonne “C” Head Large 15 Tonne Accepts 12T Dies
standard Jaw Jaw 12 Tonne “H” style with Adaptor
FEATURES

• Hard case included with die tray • All units accept standard 12 tonne dies (EP-610Hs2
• spring return ram requires additional 12T adaptor as standard uses 15T
• quality IsO9001 dies)
• 700 bar hydraulic pump required to operate • screw type female coupling # 3050-3 supplied as
standard
• EP-610Hs2 15T dies/adaptors bottom of page
SPECIFICATIONS

Jaw Maximum Crimp
Capacity Opening Capacity (mm2) Hydraulic Length
Model No. (Tonne) style Ram stroke Pressure (mm) Wt (kg)
(mm) Cu Al (bar)
“C”
EP-431H 12 standard 31 300 300 700 340 4.7
EP-510HC 12 “C” Large 42 400 300 700 420 5.7
“H”
EP-H130H 12 standard 28 300 300 700 317 4.1
500
630
EP-610HS2 15 “C” 50 400* 300* 700 375 7.0
* Using 12T Die Adaptor (#15T-PU-ADAPTOR)
Refer page pages 204–205 for 12T crimp die details / Refer page 107–108 for hydraulic pumps details
15 TONNE CRIMP DIES

MODEL NO. 15T SERIES 15 Tonne Hex Die-set suits Rec-3610

15 tonne dies are manufactured in Australia Model No. mm2 A/F Material Crimp Width
from high tensile steel billets and heat treated
to maximise strength and durability. These dies 15T-26.0AFCU 300 26.0 CU 10.5mm
suit the Izumi 15T tools. 15T-28.1AFCU 400 28.1 CU 8.5mm
15T-31.0AFCU 500 31.0 CU 7.2mm
15T-37.0AFCU 630 37.0 CU 6.2mm
15T-39.0AFAL 400/500 39.0 AL 16.5mm
Model No. Description
15T-PU-ADAPTOR PICk UP ADAPTOR TO sUIT sTANDARD
12TONNE DIEs
