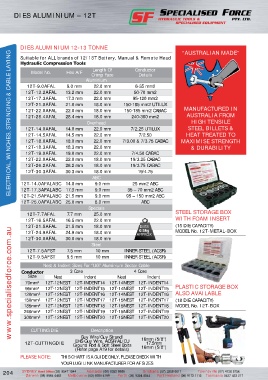

Page 214 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

DIES ALUMINIUM – 12 TONNE
DIES ALUMINIUM – 12T

DIES ALUMINIUM 12-13 TONNE
“AUSTRALIAN MADE”
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
Suitable for ALL brands of 12/13T Battery, Manual & Remote Head
Hydraulic Compression Tools
Length Of
Model No. Hex A/F Crimp Face Conductor
Details
Aluminium
12T-9.0AFAL 9.0 mm 22.0 mm 6-35 mm2
12T-13.2AFAL 13.2 mm 22.0 mm 50-70 mm2
12T-17.3AFAL 17.3 mm 22.0 mm 95-120 mm2
12T-21.0AFAL 21.0 mm 18.0 mm 150-185 mm2 UTILUX
12T-22.0AFAL 22.0 mm 18.0 mm 150-185 mm2 CABAC MANUFACTURED IN
12T-28.4AFAL 28.4 mm 18.0 mm 240-300 mm2 AUSTRALIA FROM
Overhead HIGH TENSILE
12T-14.0AFAL 14.0 mm 22.0 mm 7/2.25 UTILUX STEEL BILLETS &
12T-14.5AFAL 14.5 mm 22.0 mm 7/2.50 HEAT TREATED TO
12T-18.0AFAL 18.0 mm 22.0 mm 7/3.00 & 7/3.75 CABAC MAXIMISE STRENGTH
12T-18.3AFAL 18.3 mm 22.0 mm & DURABILITY
12T-19.0AFAL 19.0 mm 22.0 mm 7/4.50 CABAC
12T-22.0AFAL 22.0 mm 18.0 mm 19/3.25 CABAC
12T-26.2AFAL 26.2 mm 18.0 mm 19/3.75 CABAC
12T-30.3AFAL 30.3 mm 18.0 mm 19/4.75
ABC
12T-14.0AFALABC 14.0 mm 9.0 mm 25 mm2 ABC
12T-17.3AFALABC 17.3 mm 9.0 mm 35 – 70 mm2 ABC
12T-21.5AFALABC 21.5 mm 9.0 mm 95 – 150 mm2 ABC
12T-25.0AFALABC 25.0 mm 8.0 mm ABC
specials
12T-7.7AFAL 7.7 mm 25.0 mm STEEL STORAGE BOX
12T-16.5AFAL 16.5 mm 22.0 mm WITH FOAM INSERT
12T-21.5AFAL 21.5 mm 18.0 mm DIES (15 DIE CAPACITY)
www.specialisedforce.com.au
0.5kg

12T-24.9AFAL 24.9 mm 18.0 mm APPROX MODEL No. 12T-METAL-BOX
12T-30.0AFAL 30.0 mm 18.0 mm
steel
12T-7.5AFST 7.5 mm 10 mm INNER sTEEL (ACsR)
12T-9.5AFST 9.5 mm 10 mm INNER sTEEL (ACsR)

Nest & Indent sizes For “UG” Aluminium sector Cable
Conductor 3 Core 4 Core
Size Nest Indent Nest Indent
70mm² 12T-12NEST 12T-INDENT14 12T-14NEST 12T-INDENT14
95mm² 12T-12NEST 12T-INDENT15 12T-14NEST 12T-INDENT15 PLASTIC STORAGE BOX
120mm² 12T-12NEST 12T-INDENT16 12T-14NEST 12T-INDENT16 ALSO AVAILABLE
150mm² 12T-12NEST 12T-INDENT17 12T-15NEST 12T-INDENT17 (18 DIE CAPACITY)
185mm² 12T-12NEST 12T-INDENT18 12T-15NEST 12T-INDENT18 MODEL No. 12T-BOX
240mm² 12T-12NEST 12T-INDENT19 12T-15NEST 12T-INDENT19
300mm² 12T-12NEST 12T-INDENT20 12T-15NEST 12T-INDENT20

CUTTING DIE Description
Guy Wire/Guy strand/ 16mm (5/8”)
EHs Guy Wire, ACsR/AL/CU
12T-CUTTINGDIE Ground Rod & soft steel Bolts 17.5mm
(Refer page A19 for details) 16mm (5/8”)
PLEASE NOTE: THIS CHART IS A GUIDE ONLY, PLEASE CHECK WITH
YOUR LUG/LINK MANUFACTURER FOR AF SIZES
