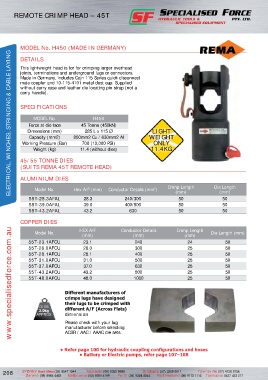

Page 218 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

REMOTE CRIMP HEAD – 45T – REMA
REMOTE CRIMP HEAD – 45T

MODEL No. H450 (MADE IN GERMANY)
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
DETAILS

This lightweight head is for for crimping larger overhead
joints, terminations and underground lugs or connectors.
Made in Germany, includes Cejn 115 series quick disconnect
male coupler and 10-115-4101 metal dust cap. supplied
without carry case and leather die locating pin strap (not a
carry handle).

SPECIFICATIONS

MODEL No. H450
Force at die face 45 Tonne (450kN)
Dimensions (mm) 285 L x 115 Ø LIGHT
Capacity (mm2) 800mm2 Cu / 630mm2 Al WEIGHT
Working Pressure (Bar) 700 (10,000 PsI) ONLY
Weight (kg) 11.4 (without dies) 11.4KG

45/55 TONNE DIES
(SUITS REMA 45T REMOTE HEAD)

ALUMINIUM DIES

Model No. Hex A/F (mm) Conductor Details (mm ) Crimp Length Die Length
2
(mm) (mm)
55T-28.3AFAL 28.3 240/300 50 50
55T-39.0AFAL 39.0 400/500 50 50
55T-43.2AFAL 43.2 630 50 50
COPPER DIES

www.specialisedforce.com.au
Model No. HEX A/F Conductor Details Crimp Length Die Length (mm)
(mm) (mm) (mm)
55T-23.1AFCU 23.1 240 24 50
55T-26.0AFCU 26.0 300 25 50
55T-28.1AFCU 28.1 400 25 50
55T-31.0AFCU 31.0 500 25 50
55T-37.0AFCU 37.0 630 25 50
55T-43.2AFCU 43.2 800 25 50
55T-48.0AFCU 48.0 1000 25 50

Different manufacturers of
crimps lugs have designed
their lugs to be crimped with
DIES
2.0kg different A/F (Across Flats)
APPROX dimension
Please check with your lug
manufacturer before selecting
ACsR / AAC / AAAC die sets.

• Refer page 100 for hydraulic coupling configurations and hoses
• Battery or Electric pumps, refer page 107–108
