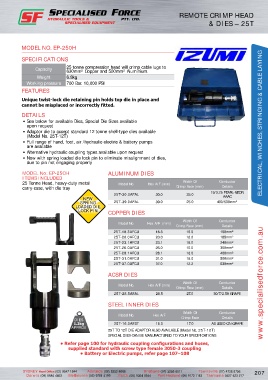

REMOTE CRIMP HEAD & DIES – 25T – IZUMI
REMOTE CRIMP HEAD
& DIES – 25T

MODEL NO. EP-250H

SPECIFICATIONS

Capacity 25 tonne compression head will crimp cable lugs to
630mm² Copper and 500mm² Aluminium.
Weight 6.8kg
Working pressure 700 Bar. 10,000 PsI
FEATURES

Unique twist-lock die retaining pin holds top die in place and
cannot be misplaced or incorrectly fitted.

DETAILS
• see below for available Dies, special Die sizes available
upon request ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
• Adaptor die to accept standard 12 tonne shell-type dies available
(Model No. 25T-12T)
• Full range of hand, foot, air /hydraulic electric & battery pumps
are available
• Alternative hydraulic coupling types available upon request
• Now with spring loaded die lock pin to eliminate misalignment of dies,
due to pin not engaging properly

MODEL No: EP-25OH ALUMINUM DIES
ITEMS INCLUDED
25 Tonne Head, heavy-duty metal Model No. Hex A/F (mm) Width Of Conductor
carry-case, with die tray Crimp Face (mm) Details
25T-30.0AFAL 30.0 25.0 19/3.75 PEARL-NEON
NEW AAAC
SPRING 25T-39.0AFAL 39.0 25.0 400/500mm²
LOADED DIE
LOCK PIN COPPER DIES
Width Of Conductor
Model No. Hex A/F (mm)
Crimp Face (mm) Details
25T-18.3AFCU 18.3 16.0 150mm²
25T-20.0AFCU 20.0 16.0 185mm²
25T-23.1AFCU 23.1 16.0 240mm²
25T-26.0AFCU 26.0 16.0 300mm²
25T-28.1AFCU 28.1 16.0 400mm²
25T-31.0AFCU 31.0 16.0 500mm²
25T-37.0AFCU 37.0 12.2 630mm²

ACSR DIES

Width Of Conductor www.specialisedforce.com.au
Model No. Hex A/F (mm)
Crimp Face (mm) Details
25T-28.5AFAL 28.5 27.0 30/7/2.50 GRAPE
STEEL INNER DIES

Width Of Conductor
Model No. Hex A/F
DIES Crimp Face Details
1.3kg 25T-16.0AFST 16.0 17.0 As UsED ON GRAPE
APPROX
25T TO 12T DIE ADAPTOR ALsO AvAILABLE (Model No. 25T-12T)
sPECIAL DIEs CAN BE MANUFACTURED TO YOUR sPECIFICATIONs
• Refer page 100 for hydraulic coupling configurations and hoses,
supplied standard with screw type female 3050-3 coupling
• Battery or Electric pumps, refer page 107–108
