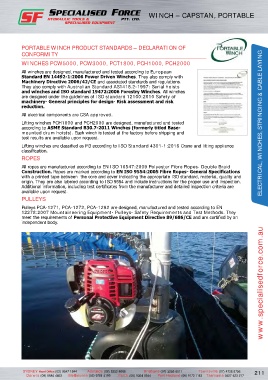

WINCH – CAPSTAN, PORTABLE

PORTABLE WINCH PRODUCT STANDARDS – DECLARATION OF
CONFORMITY
WINCHES PCW5000, PCW3000, PCT1800, PCH1000, PCH2000

All winches are designed, manufactured and tested according to European
Standard EN 14492-1:2006 Power Driven Winches. They also comply with
Machinery Directive 2006/42/CE and associated standards and regulations.
They also comply with Australian Standard AS1418.2-1997: Serial hoists
and winches and ISO standard 19472:2006 Forestry Winches. All winches
are designed under the guidelines of ISO standard 12100:2010 Safety of
machinery- General principles for design- Risk assessment and risk
reduction.
All electrical components are CSA approved.
Lifting winches PCH1000 and PCH2000 are designed, manufactured and tested ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
according to ASME Standard B30.7-2011 Winches (formerly titled Base-
mounted drum hoists). Each winch is tested at the factory before shipping and
test results are available upon request.

Lifting winches are classified as M3 according to ISO Standard 4301-1:2016 Crane and lifting appliance
classification.
ROPES
All ropes are manufactured according to EN ISO 10547:2009 Polyester Fibre Ropes- Double Braid
Construction. Ropes are marked according to EN ISO 9554:2005 Fibre Ropes- General Specifications
with a printed tape between the core and cover indicating the appropriate IsO standard, material, quality and
origin. They are also labeled according to IsO 9554 and include instructions for the proper use and inspection.
Additional information, including test certificates from the manufacturer and detailed inspection criteria are
available upon request.
PULLEYS
Pulleys PCA-1271, PCA-1272, PCA-1292 are designed, manufactured and tested according to EN
12278:2007 Mountaineering Equipment- Pulleys- Safety Requirements and Test Methods. They
meet the requirements of Personal Protective Equipment Directive 89/686/CE and are certified by an
independent body. www.specialisedforce.com.au
