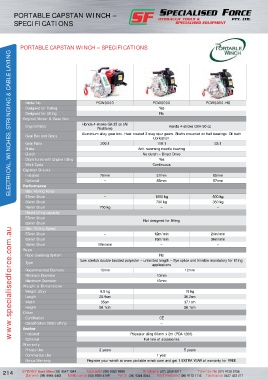

Page 224 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

PORTABLE CAPSTAN WINCH – SPECIFICATIONS – PORTABLE
WINCH
PORTABLE CAPSTAN WINCH –
SPECIFICATIONS

PORTABLE CAPSTAN WINCH – SPECIFICATIONS
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING

Model No. PCW3000 PCW5000 PCW5000-HS
Designed for Pulling Yes
Designed for Lifting No
Engine/Motor & Gear Box
Engine/Motor Honda 4-stroke GX-35 cc (All Honda 4-stroke GXH-50 cc
Positions)
Aluminium alloy gear box. Heat treated 3 stag spur gears. shafts mounted on ball bearings. Oil bath
Gear Box and Gears
lubrication.
Gear Ratio 200:1 110:1 53:1
Brake Anti-reversing needle bearing
Clutch No clutch – Direct Drive
Drum turns with Engine Idling Yes
Work Cycle Continuous
Capstan Drums
Installed 76mm 57mm 85mm
Optional – 85mm 57mm
Performance
Max. Pulling Force
57mm Drum – 1000 kg 500 kg
85mm Drum 700 kg 350 kg
76mm Drum 700 kg – –
Rated Lifting capacity
57mm Drum Not designed for lifting
85mm Drum
Max. Pulling speed
www.specialisedforce.com.au
57mm Drum – 12m/min 24m/min
85mm Drum 18m/min 36m/min
76mm Drum 10m/min – –
Rope
Rope Grabbing system No
Type Low stretch double braided polyester – unlimited length – Eye splice and thimble mandatory for lifting
applications
Recommended Diameter 10mm 12mm
Minimum Diameter 10mm
Maximum Diameter 16mm
Weight & Dimensions
Weight (Dry) 9.5 kg 16 kg
Length 28.9cm 36.2cm
Width 35cm 37.1cm
Height 26.1cm 36.1cm
Other
Certification CE
Classification (ISO) Lifting –
Anchor
Included Polyester sling 60mm x 2m (PCA-1260)
Optional Full line of accessories
Warranty
Private Use 2 years 5 years
Commercial Use 1 year
Bonus Warranty Register your winch at www.portable winch.com and get 1 EXTRA YEAR of warranty for FREE
