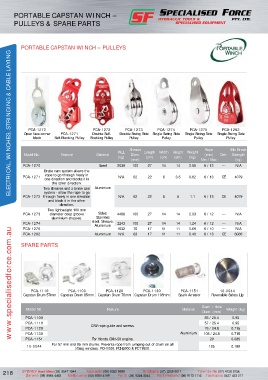

PORTABLE CAPSTAN WINCH – PULLEYS & SPARE PARTS –
PORTABLE WINCH
PORTABLE CAPSTAN WINCH –
PULLEYS & SPARE PARTS

PORTABLE CAPSTAN WINCH – PULLEYS
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING

PCA-1270 PCA-1272 PCA-1273 PCA-1274 PCA-1275 PCA-1292
Open face corner PCA-1271 Double self- Double swing side single swing side single swing side single swing side
block self-Blocking Pulley Blocking Pulley Pulley Pulley Pulley Pulley

sheave Rope Min Break
WLL Length Width Height Weight
Model No. Feature Material Diam. (mm) Cert. strength
(kg) (cm) (cm) (cm) (kg)
(mm) Min / Max (kg)
PCA-1270 steel 2039 100 27 14 14 2.56 6 / 12 --- N/A
Brake cam system allows the
rope to go through freely in
PCA-1271 one direction and blocks it in N/A 62 22 8 3.5 0.82 6 / 13 CE 4079
the other direction.
Two sheaves and a brake cam Aluminium
system - allow the rope to go
PCA-1272 through freely in one direction N/A 62 22 8 6 1.1 6 / 13 CE 4079
and block it in the other
direction.
Two lightweight 100 mm
PCA-1273 diameter deep groove sides: 4486 100 27 14 14 2.03 6 / 12 --- N/A
aluminium sheaves. stainless
PCA-1274 steel. sheave: 2243 100 27 14 14 1.24 6 / 12 --- N/A
Aluminium
PCA-1275 1632 76 17 11 11 0.69 6 / 10 --- N/A
www.specialisedforce.com.au
PCA-1292 Aluminium N/A 63 17 11 11 0.40 6 / 13 CE 6000
SPARE PARTS

PCA-1110 PCA-1100 PCA-1120 PCA-1130 PCA-1151 10-0044
Capstan Drum 57mm Capstan Drum 85mm Capstan Drum 76mm Capstan Drum 108mm spark Arrestor Reversible safety Lip

Diam. / Hole
Model No. Feature Material Weight (kg)
Diam. (mm)
PCA-1100 85 / 25.4 0.95
PCA-1110 C/W rope guide and screws. 57 / 25.4 0.95
PCA-1120 76 / 24.8 0.715
PCA-1130 Aluminium 108 / 24.8 0.715
PCA-1151 For Honda GXH-50 engine. 20 0.085
For 57 mm and 85 mm drums. Prevents rope from jumping out of drum on all
10-0044 125 0.180
lifting winches: PCH1000, PCH2000 & PCT1800.
