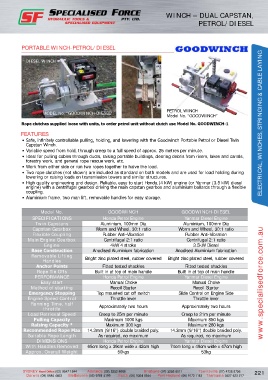

Page 231 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

WINCH – DUAL CAPSTAN, PETROL/DIESEL – GOODWINCH
WINCH – DUAL CAPSTAN,
PETROL/DIESEL

PORTABLE WINCH-PETROL/DIESEL

DIESEL WINCH

MODEL No. “GOODWINCH-DIESEL” PETROL WINCH
Model No. “GOODWINCH”

Rope clutches supplied loose with units, to order petrol unit without clutch use Model No. GOODWINCH-1 ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
FEATURES
• Safe, infinitely controllable pulling, holding, and lowering with the Goodwinch Portable Petrol or Diesel Twin
Capstan Winch.
• variable speed from hold, through creep to a full speed of approx. 25 metres per minute.
• Ideal for pulling cables through ducts, raising portable buildings, clearing debris from rivers, lakes and canals,
forestry work, and general rope rescue work, etc.
• Work from either side or run two ropes together to halve the load.
• Two rope clutches (not shown) are included as standard on both models and are used for load holding during
lowering or raising loads on transmission towers and similar structures.
• High quality engineering and design. Reliable, easy to start Honda (4 kW) engine (or Yanmar (3.5 kW) diesel
engine) with a centrifugal gearbox driving the main capstan gearbox and aluminium bollards through a flexible
coupling.
• Aluminium frame, two man lift, removable handles for easy storage.

Model No. GOODWINCH GOODWINCH-DIESEL
SPECIFICATIONS Honda Petrol Engine Yanmar Diesel Engine
Twin Capstans Aluminium, 100mm Dia Aluminium, 100mm Dia
Capstan Gearbox Worm and Wheel, 30:1 ratio Worm and Wheel, 30:1 ratio
Flexible Coupling Rubber Anti-vibration Rubber Anti-vibration
Main Engine Gearbox Centrifugal 2:1 ratio Centrifugal 2:1 ratio
Engine 4kW 4 stroke 3.5kW Diesel
Base Construction Anodised Aluminium fabrication Anodised Aluminium fabrication
Removable Lifting
Handles Bright zinc plated steel, rubber covered Bright zinc plated steel, rubber covered
Anchor Points Fitted tested shackles Fitted tested shackles
Rope Tie Offs Built in at top of main handle Built in at top of main handle
PERFORMANCE Honda Petrol Engine Yanmar Diesel Engine
Easy start Manual Choke Manual Choke www.specialisedforce.com.au
Method of starting Recoil starter Recoil starter
Emergency Stopping Top mounted cut off switch slide Control on Engine side
Engine Speed Control Throttle lever Throttle lever
Running Time, half Approximately two hours Approximately two hours
throttle
Load Retrieval Speed Creep to 25m per minute Creep to 21m per minute
Pulling Capacity Maximum 1000 kgs Maximum 850 kgs
Raising Capacity * Maximum 300 kgs Maximum 260 kgs
Recommended Rope Max 14.3mm (9/16”) double braided poly. 14.3mm (9/16”) double braided poly.
Suitable Rope Length As required, no maximum As required, no maximum
DIMENSIONS Honda Petrol Engine Yanmar Diesel Engine
With Handles Removed 65cm long x 39cm wide x 42cm high 74cm long x 49cm wide x 47cm high
Approx. Overall Weight 50kgs 53kg
