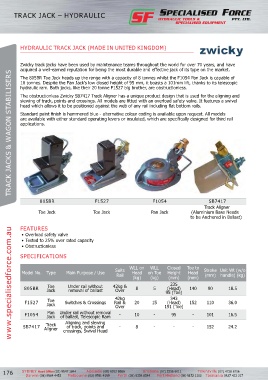

TRACK JACK – HYDRAULIC

HYDRAULIC TRACK JACK (MADE IN UNITED KINGDOM)

Zwicky track jacks have been used by maintenance teams throughout the world for over 70 years, and have
acquired a well-earned reputation for being the most durable and effective jack of its type on the market.
TRACK JACKS & WAGON STABILISERS
The 805BR Toe Jack heads up the range with a capacity of 8 tonnes whilst the F1054 Pan Jack is capable of
10 tonnes. Despite the Pan Jack’s low closed height of 95 mm, it boasts a 101mm lift, thanks to its telescopic
hydraulic ram. Both jacks, like their 20 tonne F1527 big brother, are obstructionless.
The obstructionless Zwicky SB7417 Track Aligner has a unique product design that is used for the aligning and

applications.

805BR F1527 F1054 SB7417
Track Aligner
Toe Jack Toe Jack Pan Jack (Aluminium Base Needs
to be Anchored in Ballast)

FEATURES
www.specialisedforce.com.au
• Overload safety valve
• Tested to 25% over rated capacity
• Obstructionless

SPECIFICATIONS

WLL on WLL Closed Toe to Stroke Unit Wt (w/o
Suits
Model No. Type Main Purpose / Use Rail Head on Toe Height Head (mm) handle) (kg)
(kg) (kg) (mm) (mm)
235
Toe
805BR Jack Under rail without 42kg & 8 5 95 (Toe) 140 90 18.5
(Head)
removal of ballast
Over
343
42kg
Toe
F1527 Jack Switches & Crossings Rail & 20 15 191 (Toe) 152 110 36.0
(Head)
Over
Pan Under rail without removal
F1054 Jack of ballast, Telescopic Ram - 10 - 95 - 101 16.5
Aligning and slewing
Track
SB7417 Aligner crossings, Swivel Head - 8 - - - 152 24.2
of track, points and
