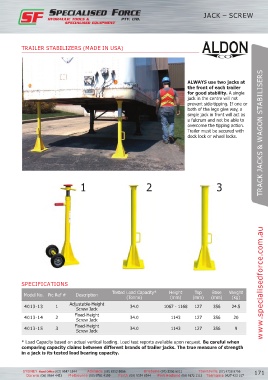

JACK – SCREW

TRAILER STABILIZERS (MADE IN USA)

ALWAYS use two jacks at
the front of each trailer
for good stability. A single
jack in the centre will not
prevent side-tipping. If one or
both of the legs give way, a
single jack in front will act as
a fulcrum and not be able to
overcome the tipping action.
Trailer must be secured with TRACK JACKS & WAGON STABILISERS
dock lock or wheel locks.

1 2 3

SPECIFICATIONS www.specialisedforce.com.au
Top
Base
Model No. Pic Ref # Description Tested Load Capacity* Height (mm) (mm) Weight
(kg)
(Tonne)
(mm)
4013-13 1 Adjustable-Height 34.0 1067 - 1168 127 356 24.5
Screw Jack
4013-14 2 Fixed-Height 34.0 1143 127 356 20
Screw Jack
Fixed-Height
4013-15 3 34.0 1143 127 356 9
Screw Jack

* Load Capacity based on actual vertical loading. Load test reports available upon request. Be careful when
comparing capacity claims between different brands of trailer jacks. The true measure of strength
in a jack is its tested load bearing capacity.
