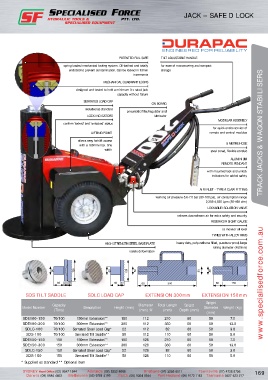

JACK – SAFE D LOCK

PATENTED FAIL sAFE TILT ADJUsTABLE HANDLE
spring loaded mechanical locking system. Oil-bathed and totally for ease of manoeuvring and compact
enclosed to prevent contamination. Can be locked in 13mm storage
increments
MECHANICAL qUADRANT LOCks
designed and tested to hold a minimum 3 x rated jack
capacity without failure
sERRATED LOAD CAP
ON BOARD
included as standard
pneumatic filter/regulator and
LOCk INDICATORs lubricator
MODULAR AssEMBLY
confirm ‘locked’ and ‘unlocked’ status
for quick onsite service of
LIFTING POINT remote and control modules TRACK JACKS & WAGON STABILISERS
allows easy forklift access
with a 160mm max. tine 5 METRE HOsE
width steel cored, flexible conduit

ALUMINIUM
REMOTE PENDANT
with mounted lock and unlock
indicators for added safety

AIR INLET - TYPE A CLAW FITTING
working air pressure 5.6-7.0 bar (80-100 psi), air consumption range
2,265-4,530 Lpm (80-160 cfm)
LOCkABLE IsOLATION vALvE
relieves downstream air for extra safety and security
REsERvOIR sIGHT GAUGE
to monitor oil level
TYREs WITH ALLOY RIMs

HIGH sTRENGTH sTEEL BAsE PLATE heavy duty, polyurethane filled, puncture-proof, large
rolling diameter (450mm)
resists deformation

50 126 50 126 50 50 50

60 22 28 60 22 60 300 60 150 www.specialisedforce.com.au

SDS TILT SADDLE SDLC LOAD CAP EXTENSION 300mm EXTENSION 150mm
spigot
Capacity Diameter Total Length spigot
Model Number Description Height (mm) Diameter Weight (kg)
(Tons) (mm) ‘A’ (mm) Depth (mm)
(mm)
SDE100-150 70/100 150mm Extension** 150 112 210 60 50 7.0
SDE100-300 70/100 300mm Extension** 300 112 360 60 50 13.0
SDLC-100 70/100 serrated steel Load Cap* 22 112 82 60 50 3.0
SDS-100 70/100 serrated Tilt saddle** 50 112 110 60 50 5.0
SDE150-150 150 150mm Extension** 150 126 210 60 50 7.0
SDE150-300 150 300mm Extension** 300 126 360 60 50 13.0
SDLC-150 150 serrated steel Load Cap* 22 126 82 60 50 3.0
SDS-150 150 serrated Tilt saddle** 50 126 110 60 50 5.0
* supplied as standard ** Optional item
