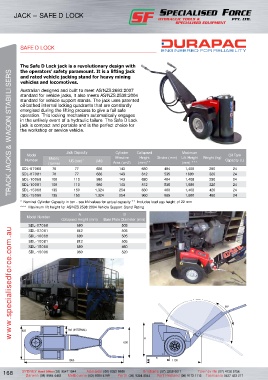

JACK – SAFE D LOCK – DURAPAC
JACK – SAFE D LOCK

SAFE D LOCK

The Safe D Lock jack is a revolutionary design with
the operators’ safety paramount. It is a lifting jack
TRACK JACKS & WAGON STABILISERS
and rated vehicle jacking stand for heavy mining
vehicles and locomotives.
Australian designed and built to meet As/NZs 2693:2007
standard for vehicle jacks, it also meets As/NZs 2538:2004
standard for vehicle support stands. The jack uses patented
oil-bathed internal locking quadrants that are constantly
energised during the lifting process to give a fail safe
operation. This locking mechanism automatically engages
in the unlikely event of a hydraulic failure. The safe D Lock
jack is compact and portable and is the perfect choice for
the workshop or service vehicle.

Jack Capacity Cylinder Collapsed Maximum
Model Oil Tank
Number Metric Us (ton)* (kN) Effective Height stroke (mm) Lift Height Weight (kg) Capacity (L)
(tonne) Area (cm2) (mm)** (mm) ***
SDL-07068 70 77 686 143 680 404 1,408 290 24
SDL-07081 70 77 686 143 812 535 1680 320 24
SDL-10068 100 110 980 143 680 404 1,408 290 24
SDL-10081 100 110 980 143 812 535 1,680 320 24
SDL-15068 135 150 1,324 254 680 400 1,408 420 24
SDL-15096 135 150 1,324 254 960 685 1,680 460 24
* Nominal Cylinder Capacity in ton - see kN values for actual capacity ** Includes load cap height of 22 mm
*** Maximum lift height for As/NZs 2538:2004 vehicle support stand Rating
A B
Model Number
Collapsed Height (mm) Base Plate Diameter (mm)
SDL-07068 680 505
www.specialisedforce.com.au
SDL-07081 812 505
SDL-10068 680 505
SDL-10081 812 505
SDL-15068 680 460
SDL-15096 960 520

60°

650 160 (INTERNAL)
A
600

B
1960 1130
