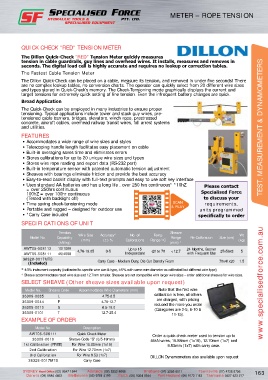

Page 173 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

METER – ROPE TENSION – DILLON
METER – ROPE TENSION

QUICK CHECK ”RED” TENSION METER

The Dillon Quick-Check ”RED” Tension Meter quickly measures
tension in cable guardrails, guy lines and overhead wires. It installs, measures and removes in
seconds. The digital load cell is highly accurate and requires no lookup or correction tables.
The Fastest Cable Tension Meter

The Dillon Quick-Check can be placed on a cable, measure its tension, and removed in under five seconds! There
are no complex lookup tables, no conversion charts. The operator can quickly select from 20 different wire sizes
and types stored in quick-Check’s memory. The Check-Tensioning mode graphically displays the current and
target tensions for extremely quick setting of line tension. Even the infrequent battery changes are quick.
Broad Application
The quick-Check can be employed in many industries to ensure proper
tensioning. Typical applications include tower and stack guy wires, pre-
tensioned cable barriers, bridges, elevators, winch rope, prestressed
concrete, aircraft cables, overhead railway transit wires, fall arrest systems
and utilities. TEST, MEASUREMENT & DYNAMOMETERS
FEATURES
• Accommodates a wide range of wire sizes and styles
• Telescoping handle length facilitates easy placement on cable
• Built-in averaging saves time and eliminates errors
• stores calibrations for up to 20 unique wire sizes and types
• stores wire rope reading and export data (Rs-232 port)
• Built-in temperature sensor with patented automatic tension adjustment
• sheaves with bearings eliminate friction and provide the best accuracy
• Easy-to-read backlit display with full-text prompts and easy to use soft key interface
• Uses standard AA batteries and has a long life . over 250 hrs continuous* *10hZ Please contact
= over 250hrs continuous
100hZ = over 100hr continuous Specialised Force
(Tested with backlight off) to discuss your
SCAN
• Time saving check-tensioning mode & PLAY requirements,
• Portable and rugged – designed for outdoor use units programmed
• *Carry Case included specifically to order
SPECIFICATIONS OF UNIT

Tension Wire size Accuracy* No. of Temp sheave Wt
Model No. Capability (mm) (±) % Calibrations Range ºC Range Re-Calibration size (cm) (kg)
(kN/kg) (mm) ¹
AWT05-508112 10/1000 4.76-19.05 3-5 Up to 15 -20 to 70 <12.7 24 Months, sooner 25x59x8 5
AWT05-508111 45/4500 Independent with Frequent Use
36328-0017MTS
(Included) Carry Case - Medium Duty, Die Cut Density Foam 70x41x20 1.5
* ±3% instrument capacity (calibrated to specific wire size & type, ±5% with same wire diameter as calibrated but different wire type)
¹ sheave accommodates rated wire size and 12.7mm smaller. sheaves are not compatible with larger wire sizes – order additional sheaves for wire sizes.
SELECT SHEAVE (Other sheave sizes available upon request) www.specialisedforce.com.au

Model No. sheave Code Accommodates Wire Diameters (mm) Note that the first wire
36309-0085 L 4.75-6.5 calibration is free, all others
are charged, with pricing
36309-0044 P 4.75-12.7 reduced the more you order
36309-0010 s 6.5-19.0 (Categories are 2-5, 6-10 &
36309-0101 T 12.7-25.4 11-15).
EXAMPLE OF ORDER
Model No. Description
AWT05-508111 quick Check Meter Order a quick check meter used to tension up to
36309-0010 sheave Code “s” (6.5-19mm) 45kN wires; 15.88mm (1x19), 12.70mm (1x7) and
1st Calibration (FREE) For Wire 15.88mm (1x19) 9.53mm (1x7) with carry case.
2nd Calibration For Wire 12.70mm (1x7)
3rd Calibration For Wire 9.53 (1x7) DILLON Dynamometers also available upon request
36328-0017MTS Carry Case
