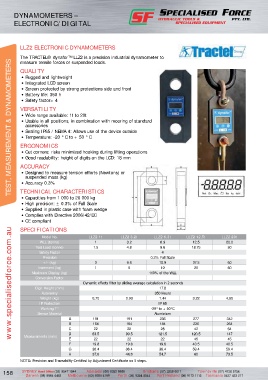

DYNAMOMETERS – ELECTRONIC/DIGITAL – TRACTEL
DYNAMOMETERS –
ELECTRONIC/DIGITAL

LLZ2 ELECTRONIC DYNAMOMETERS

The TRACTEL® dynafor™ LLZ2 is a precision industrial dynamometer to
TEST, MEASUREMENT & DYNAMOMETERS
measure tensile forces or suspended loads.
QUALITY
• Rugged and lightweight
• Integrated LCD screen
• screen protected by strong protections side and front
• Battery life: 350 h
• safety factor> 4
VERSATILITY
• Wide range available: 1t to 20t
• Usable in all positions, in combination with mooring of standard
accessories
• sealing IP65 / NEMA 4: Allows use of the device outside
• Temperature: -20 ° C to + 50 ° C
ERGONOMICS
• Cut corners: risks minimized hooking during lifting operations
• Good readability: height of digits on the LCD: 18 mm
ACCURACY
• Designed to measure tension efforts (Newtons) or
suspended mass (kg)
• Accuracy 0.3%
TECHNICAL CHARACTERISTICS
• Capacities from 1 000 to 20 000 kg
• High precision: ± 0.3% of Full scale
• supplied in plastic case with foam wedge
• Complies with Directive 2006/42/EC
• CE compliant
SPECIFICATIONS
www.specialisedforce.com.au
Model No. LLZ2 1t LLZ2 3.2t LLZ2 6.3t LLZ2 12.5t LLZ2 20t
WLL (tonne) 1 3.2 6.3 12.5 20.0
Test Load (tonne) 1.5 4.8 9.6 18.75 30
safety Factor 4
Precision 0.3% Full scale
+/- (kg) 3 9.6 18.9 37.5 60
Increment (kg) 1 5 10 20 50
Maximum Display (kg) 110% of the WLL
Conversion Factor
Dynamic effects filter by sliding average calculation in 2 seconds
Digit Height (mm) 17.8
Autonomy 350 Hours
Weight (kg) 0.75 0.93 1.44 3.22 4.95
IP Protection IP 65
Working T° -20° to + 50°C
sensor Material Aluminium
A 191 191 236 277 342
B 164 164 184 226 264
C 22 22 28 42 54
D 83.5 99.5 121.5 120.5 147
Measurements (mm)
E 22 22 22 45 45
F 19.8 19.8 19.8 40.5 40.5
G 36.4 36.4 36.4 59.4 59.4
H 37.6 44.8 54.7 60 73.5
NOTE: Precision and Traceability Certified by Adjustment Certificate on 5 steps.
