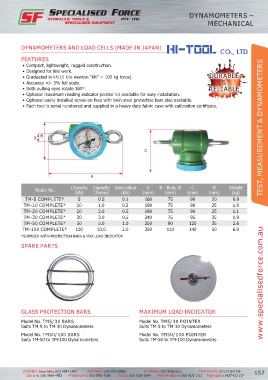

Page 167 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

DYNAMOMETERS – MECHANICAL – HI-TOOL-NGK
DYNAMOMETERS –
MECHANICAL

DYNAMOMETERS AND LOAD CELLS (MADE IN JAPAN)

FEATURES
• Compact, lightweight, rugged construction.
• Designed for line work.
• Graduated in kn (1 kilo newton “kn” = 102 kg force). DURABLE
• Accuracy +/- 3% full scale. &
• Both pulling eyes rotate 360°. RELIABLE
• optional maximum reading indicator pointer kit available for easy installation.
• optional easily installed screw-on face with twin steel protective bars also available.
• Each tool is serial numbered and supplied in a heavy duty fabric case with calibration certificate.

D B TEST, MEASUREMENT & DYNAMOMETERS

C

A

A
D
C
Model no. Capacity Capacity Graduation (mm) B - Body Ø (mm) (mm) Weight
(kn)
(mm)
(kn)
(Tonne)
(kg)
TM-5 COMPLETE* 5 0.5 0.1 160 75 90 20 0.9
TM-10 COMPLETE* 10 1.0 0.2 190 75 90 25 1.0
TM-20 COMPLETE* 20 2.0 0.5 190 75 90 25 1.1
TM-30 COMPLETE* 30 3.0 0.5 240 75 95 35 1.9
TM-50 COMPLETE* 50 5.0 1.0 250 90 120 35 2.6
TM-100 COMPLETE* 100 10.0 2.0 350 110 140 50 6.0
*SUPPLIED WITH PRoTECTIon BARS & MAX LoAD InDICAToR
SPARE PARTS

GLASS PROTECTION BARS MAXIMUM LOAD INDICATOR www.specialisedforce.com.au

Model no. TM5/30 BARS Model no. TM5/30 POINTER
Suits TM-5 to TM-30 Dynamometers Suits TM-5 to TM-30 Dynamometers
Model no. TM50/100 BARS Model no. TM50/100 POINTER
Suits TM-50 to TM-100 Dynamometers Suits TM-50 to TM-100 Dynamometers
