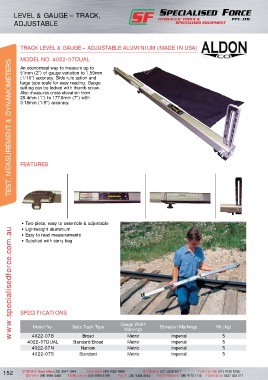

Page 162 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

LEVEL & GAUGE – TRACK, ADJUSTABLE – ALDON
LEVEL & GAUGE – TRACK,
ADJUSTABLE

TRACK LEVEL & GAUGE – ADJUSTABLE ALUMINIUM (MADE IN USA)

MODEL NO. 4022-07DUAL
TEST, MEASUREMENT & DYNAMOMETERS
An economical way to measure up to
51mm (2”) of gauge variation to 1.59mm
(1/16”) accuracy. slide rule action and
large type scale for easy reading. Gauge
setting can be locked with thumb screw.
Also measures cross elevation from
25.4mm (1”) to 177.8mm (7”) with
3.18mm (1/8”) accuracy.

FEATURES

• Two piece, easy to assemble & adjustable
• Lightweight aluminium
www.specialisedforce.com.au
• Easy to read measurements
• supplied with carry bag

SPECIFICATIONS

Model No. suits Track Type Gauge Width Elevation Markings Wt (kg)
Markings
4022-07B Broad Metric Imperial 5
4022-07DUAL standard/Broad Metric Imperial 5
4022-07N Narrow Metric Imperial 5
4022-07S standard Metric Imperial 5
