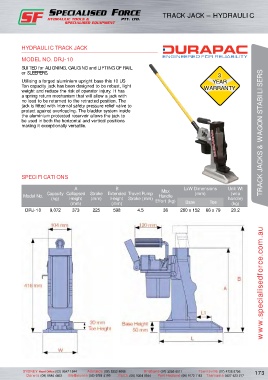

TRACK JACK – HYDRAULIC

HYDRAULIC TRACK JACK

MODEL NO. DRJ-10

sUITED for ALIGNING, GAUGING and LIFTING OF RAIL
or sLEEPERs. 3

Utilising a forged aluminium upright base this 10 Us YEAR
Ton capacity jack has been designed to be robust, light WARRANTY
weight and reduce the risk of operator injury. It has
a spring return mechanism that will allow a jack with
no load to be returned to the retracted position. The
jack is fitted with internal safety pressure relief valve to
protect against overloading. The bladder system inside
the aluminium protected reservoir allows the jack to
be used in both the horizontal and vertical positions
making it exceptionally versatile. TRACK JACKS & WAGON STABILISERS

SPECIFICATIONS

A B Max LxW Dimensions Unit Wt
(w/o
Model No. Capacity Collapsed stroke Extended Travel/Pump Handle (mm) handle)
(mm)
Height stroke (mm)
(kg)
Height
(mm) (mm) Effort (kg) Base Toe (kg)
DRJ-10 9,072 373 225 598 4.5 36 280 x 152 66 x 79 20.2 www.specialisedforce.com.au
