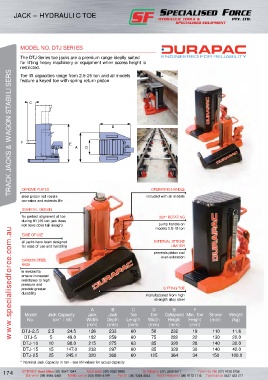

JACK – HYDRAULIC TOE – DURAPAC
JACK – HYDRAULIC TOE

MODEL NO. DTJ SERIES

The DTJ-series toe jacks are a premium range ideally suited
for lifting heavy machinery or equipment when access height is
restricted.
TRACK JACKS & WAGON STABILISERS
Toe lift capacities range from 2.5-25 ton and all models
feature a keyed toe with spring return piston.

C

B

F E
A D

CHROME PLATED OPERATING HANDLE
steel piston rod resists included with all models
corrosion and extends life
DOvETAIL DEsIGN
for perfect alignment of toe 360° ROTATING
during lift (25 ton jack does
not have dove tail design) pump handle on
models 2.5-15 ton
www.specialisedforce.com.au
EAsE OF UsE
all jacks have been designed INTERNAL sTROkE
for ease of use and handling LIMITER
prevents piston rod
over-extension
CARBON sTEEL
BAsE
is welded to
ensure increased
resistance to high
pressure and
provide greater LIFTING TOE
durability
manufactured from high
strength alloy steel

A B C D E F
Model Jack Capacity Jack Jack Toe Toe Collapsed Min. Toe stroke Weight
No. ton* / kN Width Depth Length Width Height Height (mm) (kg)
(mm) (mm) (mm) (mm) (mm) (mm)
DTJ-2.5 2.5 24.5 126 233 60 50 232 19 110 11.6
DTJ-5 5 49.0 182 259 60 75 282 22 130 22.0
DTJ-10 10 98.0 215 275 63 85 320 28 140 32.0
DTJ-15 15 147.0 238 297 60 85 328 30 140 42.0
DTJ-25 25 245.1 320 368 60 125 364 34 150 100.0
* Nominal Jack Capacity in ton - see kN values for actual capacity
