AIR BAGS

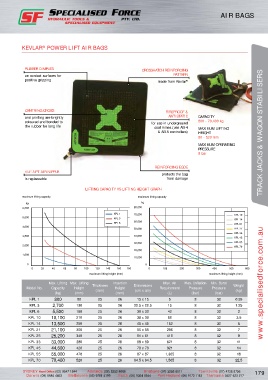

KEVLAR POWER LIFT AIR BAGS
®

RUBBER DIMPLEs CROssHATCH REINFORCING
on contact surfaces for PATTERN
positive gripping made from kevlar ®

CENTRING CROss FIREPROOF &
and printing are brightly ANTIsTATIC CAPACITY
coloured and bonded to for use in underground 800 - 70,400 kg
the rubber for long life coal mines (use AB-4 MAXIMUM LIFTING
& AB-5 controllers) HEIGHT TRACK JACKS & WAGON STABILISERS
80 - 520 mm
MAXIMUM OPERATING
PREssURE
8 bar

REINFORCING EGDE
1/4"-NPT AIR NIPPLE
protects the bag
is replaceable from damage

LIFTING CAPACITY vs LIFTING HEIGHT GRAPH
maximum lifting capacity maximum lifting capacity
kg kg
6,000 80,000
kPL 1 70,000 kPL 10
5,000 kPL 3 kPL 14
kPL 6 60,000 kPL 21
4,000
50,000 KPL 25
kPL 33
3,000 40,000 kPL 45
30,000 kPL 55
2,000 kPL 70
20,000
1,000
10,000
0 0
0 20 40 60 80 100 120 140 160 180 0 100 200 300 400 500 600
maximum lifting height (mm) maximum lifting height (mm)

Max. Lifting Max. Lifting Insertion Max. Air Max. Inflation Min. Burst www.specialisedforce.com.au
Model No. Capacity Height Thickness Height Dimensions Requirement Pressure Pressure Weight
(kg) (mm) (mm) (mm) (cm x cm) (L) (bar) (bar) (kg)
KPL 1 800 80 25 26 15 x 15 5 8 32 0.55
KPL 3 2,700 130 25 26 22.5 x 22.5 15 8 32 1.25
KPL 6 5,500 160 25 26 30 x 30 42 8 32 2
KPL 10 10,100 210 25 26 38 x 38 86 8 32 3.5
KPL 14 13,500 250 25 26 45 x 45 152 8 32 5
KPL 21 21,100 300 25 26 55 x 55 296 8 32 7
KPL 25 25,200 340 25 26 61 x 61 416 8 32 9
KPL 33 33,000 380 25 26 69 x 69 621 8 32 11
KPL 45 44,600 420 25 26 78 x 78 921 8 32 14
KPL 55 55,000 470 25 26 87 x 87 1,305 8 32 18
KPL 70 70,400 520 25 26 94.5 x 94.5 1,505 8 32 22.5
