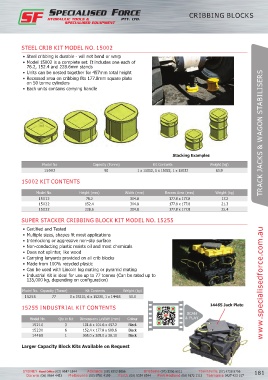

Page 191 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

CRIBBING BLOCKS
CRIBBING BLOCKS

STEEL CRIB KIT MODEL NO. 15002

• Steel cribbing is durable - will not bend or warp
• Model 15002 is a complete set. It includes one each of
76.2, 152.4 and 228.6mm stands
• units can be nested together for 457mm total height
• Recessed area on cribbing fits 177.8mm square plate
on 50 tonne cylinders
• Each units contains carrying handle

Stacking Examples TRACK JACKS & WAGON STABILISERS

Model No Capacity (Tonne) Kit Contents weight (kg)
15002 90 1 x 15012, 1 x 15022, 1 x 15032 63.9

15002 KIT CONTENTS

Model No. Height (mm) width (mm) recess Area (mm) weight (kg)
15012 76.2 304.8 177.8 x 177.8 17.2
15022 152.4 304.8 177.8 x 177.8 21.3
15032 228.6 304.8 177.8 x 177.8 25.4

SuPER STACKER CRIBBING BLOCK KIT MODEL NO. 15255

• Certified and Tested
• Multiple sizes, shapes fit most applications
• Interlocking or aggressive non-slip surface
• Non-conducting plastic resists oil and most chemicals
• Does not splinter, like wood
• Carrying lanyards provided on all crib blocks
• Made from 100% recycled plastic
• Can be used with Lincoln log mating or pyramid mating
• Industrial Kit is ideal for use up to 77 tonnes (Can be rated up to
135,000 kg, depending on configuration) www.specialisedforce.com.au

Model No. Capacity (Tonne) Kit Contents weight (kg)
15255 77 3 x 15210, 6 x 15230, 1 x 14465 50.0
15255 INDuSTRIAL KIT CONTENTS 14465 Jack Plate
SCAN
Model No. qty in Kit Dimensions LxwxH (mm) Colour & PLAY
15210 3 101.6 x 101.6 x 457.2 Black
15230 6 152.4 x 177.8 x 609.6 Black
14465 1 305.0 x 305.0 x 38.10 Black

Larger Capacity Block Kits Available on Request
