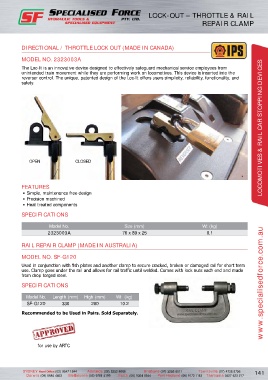

Page 151 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

LOCK-OUT – THROTTLE & RAIL REPAIR CLAMP – IPS
LOCK-OUT – THROTTLE & RAIL
REPAIR CLAMP

DIRECTIONAL / THROTTLE LOCK OUT (MADE IN CANADA)

MODEL NO. 2323003A

The Loc-It is an innovative device designed to effectively safeguard mechanical service employees from
unintended train movement while they are performing work on locomotives. This device is inserted into the
reverser control. The unique, patented design of the Loc-It offers users simplicity, reliability, functionality, and
safety.

OPEN CLOSED LOCOMOTIVES & RAIL CAR STOPPING DEVICES

FEATURES
• simple, maintenance free design
• Precision machined
• Heat treated components
SPECIFICATIONS

Model No. size (mm) Wt (kg)
2323003A 76 x 89 x 25 0.1

RAIL REPAIR CLAMP (MADE IN AUSTRALIA)

MODEL NO. SF-G120

Used in conjunction with fish plates and another clamp to secure cracked, broken or damaged rail for short term
use. Clamp goes under the rail and allows for rail traffic until welded. Comes with lock nuts each end and made
from drop forged steel.

SPECIFICATIONS www.specialisedforce.com.au

Model No. Length (mm) High (mm) Wt (kg)
SF-G120 330 200 10.2

Recommended to be Used in Pairs. Sold Separately.

for use by ARTC
