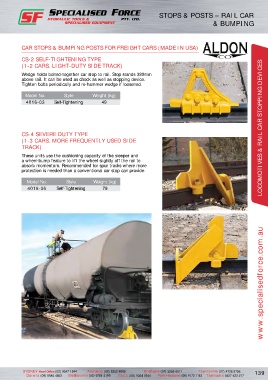

Page 149 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

INDEX TEST PAGE 1
STOPS & POSTS – RAIL CAR
& BUMPING

CAR STOPS & BUMPING POSTS FOR FREIGHT CARS (MADE IN USA)

CS-2 SELF-TIGHTENING TYPE
(1-2 CARS. LIGHT-DUTY SIDE TRACK)

Wedge holds bolted-together car stop to rail. stop stands 380mm
above rail. It can be used as chock as well as stopping device.
Tighten bolts periodically and re-hammer wedge if loosened.

Model No. style Weight (kg)
4016-03 self-Tightening 49

CS-4 SEVERE DUTY TYPE LOCOMOTIVES & RAIL CAR STOPPING DEVICES
(1-3 CARS. MORE FREQUENTLY USED SIDE
TRACK)
These units use the cushioning capacity of the sleeper and
a wheel-bump feature to lift the wheel slightly off the rail to
absorb momentum. Recommended for spur tracks where more
protection is needed than a conventional car stop can provide.

Model No. style Weight (kg)
4016-06 self-Tightening 79
