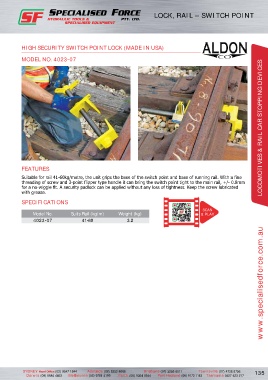

Page 145 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18
P. 145

LOCK, RAIL – SWITCH POINT – ALDON
                                                                     LOCK, RAIL – SWITCH POINT







           HIGH SECURITY SWITCH POINT LOCK (MADE IN USA)

           MODEL NO. 4023-07





























           FEATURES                                                                                                  LOCOMOTIVES & RAIL CAR STOPPING DEVICES
           Suitable for rail 41-60kg/metre, the unit grips the base of the switch point and base of running rail. With a fine
           threading of screw and 3-point flipper type handle it can bring the switch point tight to the main rail, +/- 0.8mm
           for a no-wiggle fit. A security padlock can be applied without any loss of tightness. Keep the screw lubricated
           with grease.

           SPECIFICATIONS
                                                                                           SCAN
                Model No.        suits Rail (kg/m)    Weight (kg)                         & PLAY
                4023-07              41-60               3.2                                                          www.specialisedforce.com.au
