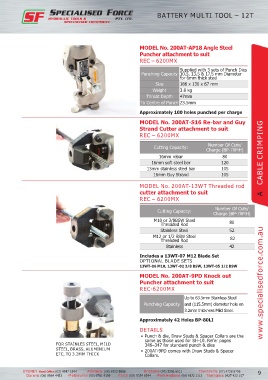

P. 19
BATTERY MULTI TOOL – 12T
MODEL No. 200AT-AP18 Angle Steel
Puncher attachment to suit
REC – 6200MX
Supplied with 3 sets of Punch Dies
Punching Capacity 10.5, 13.5 & 17.5 mm Diameter
for 6mm thick steel
Size 186 x 130 x 67 mm
Weight 3.8 kg
Throat Depth 47mm
To Centre of Punch 23.5mm
Approximately 100 holes punched per charge
MODEL No. 200AT-S16 Re-bar and Guy
Strand Cutter attachment to suit
REC – 6200MX
Number Of Cuts/
Cutting Capacity:
Charge (BP-70MH)
16mm rebar 80 A CABLE CRIMPING
16mm soft steel bar 120
13mm stainless steel bar 105
16mm Guy Strand 105
MODEL No. 200AT-13WT Threaded rod
cutter attachment to suit
REC – 6200MX
Number Of Cuts/
Cutting Capacity:
Charge (BP-70MH)
M10 or 3/8BSW Steel 80
Threaded Rod
Stainless Steel 52
M12 or 1/2 BSW Steel
Threaded Rod 82
Stainless 42
Includes a 13WT-07 M12 Blade Set
OPTIONAL BLADE SETS
13WT-06 M10, 13WT-02 3/8 BSW, 13WT-05 1/2 BSW
MODEL No. 200AT-9PD Knock out
Puncher attachment to suit www.specialisedforce.com.au
REC-6200MX
Up to 63.5mm Stainless Steel
Punching Capacity and (115.5mm) diameter hole on
3.2mm thickness Mild Steel.
Approximately 42 Holes BP-80LI
DETAILS
• Punch & die, Draw Studs & Spacer Collars are the
same as those used for SH-10. Refer pages
FOR STAINLES STEEL, MILD 346–347 for standard punch & dies
STEEL, BRASS, ALUMINIUM • 200AT-9PD comes with Draw Studs & Spacer
ETC, TO 3.2MM THICK Collars.
