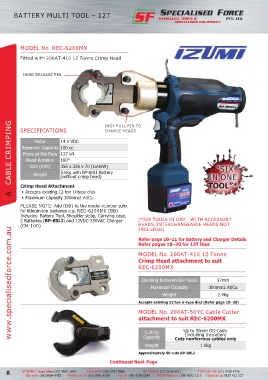

Page 18 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

BATTERY MULTI TOOL – 12T

MODEL No. REC-6200MX

Fitted with 200AT-410 12 Tonne Crimp Head

HEAD RELEASE PIN

A CABLE CRIMPING SPECIFICATIONS EASY PULL PIN TO IN ONE

CHANGE HEADS
Motor
14.4 VDC
Reservoir Capacity 100 cc
Force at Die Face 127 kN
Head Rotation
180°
“SIX
Size (mm)
356 x 326 x 70 (LxHxW)
5.8kg with BP-80LI Battery
Weight
(without crimp head)
Crimp Head Attachment
• Accepts existing 12 ton U-type dies
• Maximum Capacity 300mm2 Al/Cu TOOL”*
PLEASE NOTE: Add (BB) to the model number sufix
for lithium-ion batteries e.g. REC-6200MX (BB)
Includes: Battery Tool, Shoulder strap, Carrying case,
2 Batteries (BP-80LI) and 12VDC-230VAC Charger (*SIX TOOLS IN ONE - WITH ACCESSORY
(CH-100) HEADS, INTERCHANGEABLE HEADS NOT
INCLUDED)
www.specialisedforce.com.au
Refer page 10–11 for Battery and Charger Details
Refer pages 18–20 for 12T Dies
MODEL No. 200AT-410 12 Tonne
Crimp Head attachment to suit
REC-6200MX

Opening Between Die Faces 17mm
Maximum Capacity 300mm2 Al/Cu
Weight 2.4kg
Accepts existing 12 ton U-type dies (Refer page 18–20)
MODEL No. 200AT-50YC Cable Cutter
attachment to suit REC-6200MX

Cutting Up to 50mm OD Cable
(Including Insulation)
Capacity Cuts nonferrous cables only
Weight 1.0kg
Approximately 50 cuts BP-80LI
Continued Next Page
