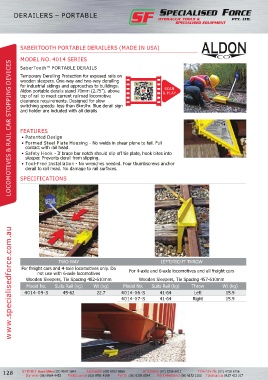

Page 138 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

DERAILERS – PORTABLE

SABERTOOTH PORTABLE DERAILERS (MADE IN USA)

MODEL NO. 4014 SERIES
LOCOMOTIVES & RAIL CAR STOPPING DEVICES
SaberTooth™ PORTABLE DERAILS
Temporary Derailing Protection for exposed rails on
wooden sleepers. One-way and two-way derailing
for industrial sidings and approaches to buildings.
SCAN
Aldon portable derails stand 70mm (2.75”). above & PLAY
top of rail to meet current railroad locomotive
clearance requirements. Designed for slow
switching speeds: less than 8km/hr. Blue derail sign
and holder are included with all derails

FEATURES
• Patented Design
• Formed Steel Plate Housing - No welds in shear plane to fail. Full
contact with rail head.
• Safety Hook - If brace bar notch should slip off tie plate, hook bites into
sleeper. Prevents derail from slipping.
• Tool-Free Installation - No wrenches needed. Four thumbscrews anchor
derail to rail head. No damage to rail surfaces.
SPECIFICATIONS

www.specialisedforce.com.au

TWO-WAY LEFT/RIGHT THROW
For freight cars and 4-axle locomotives only. Do
not use with 6-axle locomotives For 4-axle and 6-axle locomotives and all freight cars
Wooden Sleepers, Tie Spacing 482-610mm Wooden Sleepers, Tie Spacing 457-610mm
Model No. Suits Rail (kg) Wt (kg) Model No. Suits Rail (kg) Throw Wt (kg)
4014-09-S 45-62 22.7 4014-06-S 41-64 Left 15.9
4014-07-S 41-64 Right 15.9
