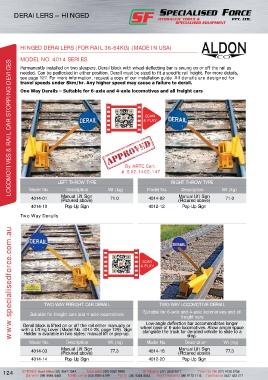

Page 134 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

DERAILERS – HINGED – ALDON
DERAILERS – HINGED

HINGED DERAILERS (FOR RAIL 36-64KG) (MADE IN USA)

MODEL NO. 4014 SERIES
LOCOMOTIVES & RAIL CAR STOPPING DEVICES
Permanently installed on two sleepers. Derail block with wheel-deflecting bar is swung on or off the rail as
needed. Can be padlocked in either position. Derail must be sized to fit a specific rail height. For more details,
see page 127. For more information, request a copy of our installation guide. All derails are designed for
travel speeds under 8km/hr. Any higher speed may cause a failure to derail.
One Way Derails – Suitable for 6-axle and 4-axle locomotives and all freight cars

SCAN
& PLAY

By ARTC Cert.
# S 02-1402-147

LEFT THROW TYPE RIGHT THROW TYPE
Model No. Description Wt (kg) Model No. Description Wt (kg)
Manual Lift sign
Manual Lift sign
4014-01 (Pictured above) 71.0 4014-02 (Pictured above) 71.0
4014-10 Pop-Up sign 4012-12 Pop-Up sign
Two Way Derails

www.specialisedforce.com.au

SCAN
& PLAY

TWO-WAY FREIGHT CAR DERAIL TWO-WAY LOCOMOTIvE DERAIL
suitable for 6-axle and 4-axle locomotives and all
suitable for freight cars and 4-axle locomotives freight cars
Low-angle deflection bar accommodates longer
Derail block is lifted on or off the rail either manually or wheel base of 6-axle locomotives. Allow ample space
with a Lifting Lever (Model No. 4014-28, page 129). sign alongside the track for derailed vehicle to slide to a
Holder is available in two styles: manual lift or pop-up. stop.
Model No. Description Wt (kg) Model No. Description Wt (kg)
Manual Lift sign
Manual Lift sign
4014-03 (Pictured above) 77.3 4014-18 (Pictured above) 77.3
4014-14 Pop-Up sign 4012-20 Pop-Up sign
