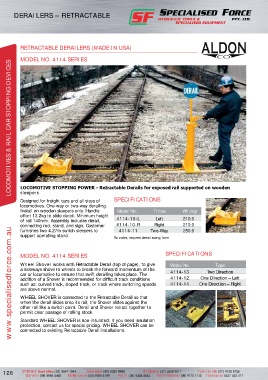

Page 136 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

DERAILERS – RETRACTABLE – ALDON
DERAILERS – RETRACTABLE

RETRACTABLE DERAILERS (MADE IN USA)

MODEL NO. 4114 SERIES
LOCOMOTIVES & RAIL CAR STOPPING DEVICES

LOCOMOTIVE STOPPING POWER - Retractable Derails for exposed rail supported on wooden
sleepers

Designed for freight cars and all sizes of SPECIFICATIONS
locomotives. One-way or two-way derailing.
Install on wooden sleepers only. Handle Model No. Throw Wt (kg)
effort 13.2kg to slide derail. Minimum height
of rail 140mm. Assembly includes derail, 4114-10-L Left 210.0
connecting rod, stand, and sign. Customer 4114-10-R Right 210.0
www.specialisedforce.com.au
furnishes two 4.27m switch sleepers to 4114-11 Two-Way 250.0
support operating stand. To order, request derail sizing form

MODEL NO. 4114 SERIES SPECIFICATIONS
Wheel Shover works with Retractable Derail (top of page), to give Model No. Type
a sideways shove to wheels to break the forward momentum of the
car or locomotive to ensure that swift derailing takes place. The 4114-13 Two Direction
addition of a Shover is recommended for difficult track conditions 4114-12 One Direction – Left
such as: curved track, sloped track, or track where switching speeds 4114-14 One Direction – Right
are above normal.

WHEEL SHOVER is connected to the Retractable Derail so that
when the derail slides onto its rail, the shover slides against the
other rail like a switch point. Derail and shover retract together to
permit clear passage of rolling stock.
standard WHEEL SHOVER is non-insulated. If you need insulation
protection, contact us for special pricing. WHEEL SHOVER can be
connected to existing Retractable Derail installations.
