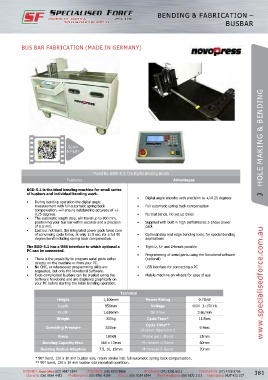

Page 393 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19
P. 393

BENDING & FABRICATION –
                                                                                                     BUSBAR





           BUS BAR FABRICATION (MADE IN GERMANY)

























                               SCAN                                                                                   J   HOLE MAKING & BENDING
                               & PLAY




                                          Model No. BGD-5.1 The Digital Bending Bench
                               Features                                       Advantages

             BGD-5.1 is the ideal bending machine for small series
             of busbars and individual bending work.
                                                              •   Digital angle encoder with precision to +/-0.25 degrees
             •   During bending operation the digital angle
                 measurement with full automatic spring back   •   Full automatic spring back compensation
                 compensation, will ensure outstanding accuracy of +/-
                 0.25 degrees.                                •   No trial bends. No set up times
             •   The automatic length stop, will travel up to 800 mm,
                 positioning your bus bar within seconds and a precision   •   Supplied with built in high performance 3-phase power
                 of 0.5 mm.                                       pack
             •   Last but not least, the integrated power pack takes care
                 of convincing cycle times, at only 11.5 sec. for a full 90   •   Optional step and edge bending tools, for special bending
                 degree bend including spring back compensation.    applications

             The BGD-5.1 has a USB interface to which optional a   •   Tight L-, U- and Z-bends possible
             PC can be connected.
                                                              •   Programming of serial parts using the Novobend software
             •   There is the possibility to program serial parts either   (optional)
                 directly on the machine or from your PC.
             •   No CNC, or whatsoever programming skills are   •   USB interface for connecting a PC
                 requested, but only the Novobend Software.
             •   Even complicated busbars can be created using the   •   Mobile machine on wheels for ease of use
                 Software Novobend and are displayed graphically on
                 your PC before starting the initial bending operation.                                               www.specialisedforce.com.au
                                                      Technical
                          Height               1,100mm            Power Rating           0.75kW
                           Depth                950mm               Voltage           400V  3~/50 Hz
                           Width               1,630mm              Oil Flow             3.6L/min
                          Weight                300kg             Cycle Time*            11.5sec
                                                                  Cycle Time**
                     Operating Pressure         200bar                                    9.4sec
                                                               (Repeat Operation)
                           Force                180kN           Minimum L-Bend            25mm
                    Bending Capacity Max.     160 x 13mm        Minimum U-Bend            60mm
                   Bending Radius Adaptors   7.5, 10, 15mm      Minimum Z-Bend            70mm

                       * 90° bend, 120 x 10 mm busbar size, return stroke incl. full automatic spring back compensation.
                       ** 90° bend, 120 x 10 mm busbar size repeated operation.
