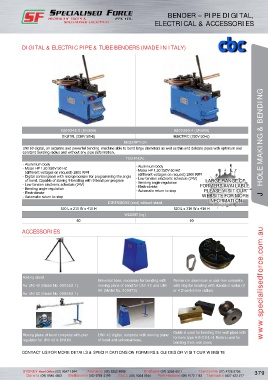

Page 391 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19
P. 391

BENDER – PIPE DIGITAL,
                                                                      ELECTRICAL & ACCESSORIES





           DIGITAL & ELECTRIC PIPE & TUBE BENDERS (MADE IN ITALY)





















                            9200345.5 (UNI60A)                                9200350.4 (UNI60A)
                            DIGITAL (230V 50Hz)                               ELECTRIC (230V 50Hz)
                                                        DESCRIPTION                                                   J   HOLE MAKING & BENDING
           UNI 60 digital, an accurate and powerful bending  machine able to bend large diameters as well as thin and delicate pipes with optimum and
           constant bending radius and without any pipe deformation.
                                                         TECHINCAL
           - Aluminium body
           -  Motor HP 1,30 230V 50 HZ                       - Aluminium body
            (different voltages on request) 2800 RPM         -  Motor HP 1,30 230V 50 HZ
           -  Digital control panel with microprocessor for programming the angle   (different voltages on request) 2800 RPM
            of bend. Capable of storing 9 bending with 9 bend per program   - Low tension electronic schedule (24V)   LARGE RANGE OF
           - Low tension electronic schedule (24V)           - Bending angle regulation   FORMERS AVAILABLE.
           - Bending angle regulation                        - Electrobrake
           - Electrobrake                                    - Automatic return to stop     PLEASE VISIT OUR
           - Automatic return to stop                                                      WEBSITE FOR MORE
                                                 DIMENSIONS (mm) without stand                INFORMATION
                            520 L x 210 W x 410 H                             520 L x 210 W x 410 H
                                                        WEIGHT (kg)
                                   60                                                60

           ACCESSORIES











           Folding stand.
                                             Universal base, necessary for bending with   Formers in aluminium or cast-iron complete
           For UNI 42 (Model No. 000592.1).   moving plane of bend for UNI 42 and UNI   with ring for bending with standard radius (3  www.specialisedforce.com.au
                                             60 (Model No. 000970)            or 4 D centre line radius).
           For UNI 60 (Model No. 000593.1).








                                                                              Guide is used for bending thin-wall pipes with
           Moving plane of bend complete with plan   UNI 42 digital, complete with moving plane   formers type A-B-C-E-L-H. Rollers used for
           regulator for UNI42 & UNI60       of bend and universal base.
                                                                              bending thick wall pipes

           CONTACT US FOR MORE DETAILS & SPECIFICATIONS ON FORMERS & GUIDES OR VISIT OUR WEBSITE
