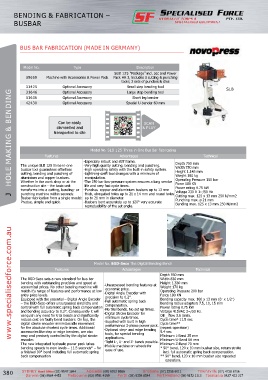

P. 392

BENDING & FABRICATION –
       BUSBAR





          BUS BAR FABRICATION (MADE IN GERMANY)



            Model No.             Type                        Description
                                                    SLB 125 “Package” incl. acc and Power
             39659    Machine with Accessories & Power Pack  Pack HA 3, includes 3 cutting & punching
                                                       tools; 3 sets of punches & dies
             31425           Optional Accessory           Small step bending tool                     SLB
      J   HOLE MAKING & BENDING
             31646           Optional Accessory          Large step bending tool
             31636           Optional Accessory             Short leg bender
             42430           Optional Accessory          Special U-bender 60 mm



                           Can be easily                         SCAN
                          dismantled and                        & PLAY
                         transported to site



                                         Model No. SLB 125 Three in One Bus Bar Fabricating
                     Features                         Advantages                           Technical
                                      -Especially robust and stiff frame.
          The unique SLB 125 three-in-one   -Very high quality cutting, bending and punching.  Depth 750 mm
          busbar tool guarantees effortless   - High operating safety with the built-in safety system.  Width 750 mm
          cutting, bending and punching of   - Lightning-swift tool changes with a minimum of   Height 1.145 mm
          aluminium and copper busbars.   manipulation.                        Weight 180 kg
          Whether in the work shop or at the   - The 150 bar low-pressure system ensures a long service   Operating Pressure 150 bar
          construction site - the basic unit   life and very fast cycle times.  Force 180 KN
          transforms into a cutting, bending- or  - Punches  copper and aluminium busbars up to 13 mm   Power rating 0.75 kW
          punching machine within seconds.   thick, elongated holes up to 21 x 14 mm and round holes  Voltage 230 V 1~/50 Hz
          Busbar fabrication from a single mould:  up to 21 mm in diameter.    Cutting max. 125 x 13 mm 250 N/mm2
          Precise, simple and quick.  - Busbars bent accurately up to 120° very accurate   Punching max. ø 21 mm
                                       reproducibility of the set angle.       Bending max. 125 x 13 mm 250 N/mm2





      www.specialisedforce.com.au







                                           Model No. BGD-5eco The Digital Bending Bench
                         Features                      Advantages                       Technical
                                                                        Depth 950 mm
          The BGD-5eco sets a new standard for bus bar                  Width 830 mm
          bending with outstanding precision and speed at               Height 1.330 mm
          economical prices. No other bending machine will   - Unsurpassed bending features at   Weight 170 kg
          match it‘s range of features and performance at low   economic price.  Operating Pressure 200 bar
          entry price levels.                  - Digital Angle Encoder with   Force 180 KN
          Equipped with the essential – Digital Angle Encoder   precision to 0.2°.  Bending capacity max. 160 x 13 mm (6· x 1/2·)
          – the BGD-5eco offers unsurpassed simplicity and   - Full automatic spring back   Bending radius adaptors 7.5, 10, 15 mm
          control with full automatic spring back compensation   compensation.  Power rating 0.75 kW
          and bending accuracy to 0.2°. Consequently it will   - No trial bends. No set up times.  Voltage 415VAC 3~/50 Hz.
          vanquish any need for trial bends and significantly   - Digital Stroke Encoder for   Oil _ flow 3.6 l/min.
          reduce cost on faulty bend busbars. On top, the   minimum cycle times.  Cycle time* 11.5 sec.
          digital stroke encoder minimizes idle movement   - Supplied with built in high   Cycle time**
          for the absolute shortest cycle times. Additional   performance 3-phase power pack.  (repeat operation)
          accessories like step or edge benders, are also   - Optional step- and edge bending   9.4 sec.
          easy and precisely controlled by the digital stroke   tools, for special bending   Minimum L-Bend 25 mm
          encoder.                              applications.           Minimum U-Bend 60 mm
          The new integrated hydraulic power pack takes   - Tight L-, U- and Z- bends possible.  Minimum Z-Bend 70 mm
          bending speeds to new levels – 11.5 seconds* – for   - Mobile machine on wheels for   *  90° bend, 120 x 10 mm busbar size, return stroke
          a finished 90° bend including full automatic spring   ease of use.  incl. full automatic spring back compensation.
          back compensation                                             **  90° bend, 120 x 10 mm busbar size repeated
                                                                          operation.
