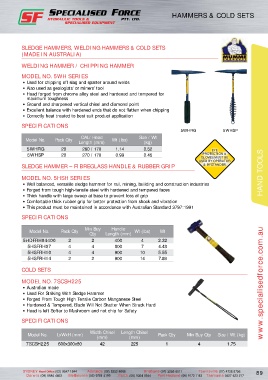

Page 99 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

HAMMERS & COLD SETS – MUMME
HAMMERS & COLD SETS

SLEDGE HAMMERS, WELDING HAMMERS & COLD SETS
(MADE IN AUSTRALIA)

WELDING HAMMER / CHIPPING HAMMER

MODEL NO. 5WH SERIES
• Used for chipping off slag and spatter around welds
• Also used as geologists’ or miners’ tool
• Head forged from chrome alloy steel and hardened and tempered for
maximum toughness
• Ground and sharpened vertical chisel and diamond point
• Excellent balance with hardened ends that do not flatten when chipping
• Correctly heat treated to best suit product application

SPECIFICATIONS
5WHRG 5WHSP

Model No. Pack qty OAL/ Head Wt (lbs) size / Wt
Length (mm) (kg)
5WHRG 20 260 / 170 1.14 0.52 EYE
5WHSP 20 270 / 170 0.99 0.45 PROTECTION &
GLOVES MUST BE
USED BY OPERATOR
SLEDGE HAMMER – FIBREGLASS HANDLE & RUBBER GRIP & BYSTANDER

MODEL NO. 5HSH SERIES HAND TOOLS
• Well balanced, versatile sledge hammer for rail, mining, building and construction industries
• Forged from tough high-tensile steel with hardened and tempered faces
• Thick handle with large sweep at base to prevent loss of grip
• Comfortable thick rubber grip for better protection from shock and vibration
• This product must be maintained in accordance with Australian standard 3797:1991

SPECIFICATIONS

Min Buy Handle
Model No. Pack qty qty Length (mm) Wt (lbs) Wt

5HDFRH04400 2 2 400 4 2.32
5HSFRH07 4 4 800 7 4.48
5HSFRH10 4 4 900 10 5.55
5HSFRH14 2 2 900 14 7.89

COLD SETS

MODEL NO. 7SCSH225 www.specialisedforce.com.au
• Australian made
• Used For striking With sledge Hammer
• Forged From Tough High Tensile Carbon Manganese steel
• Hardened & Tempered, Blade Will Not shatter When struck Hard
• Head is left softer to Mushroom and not chip for safety

SPECIFICATIONS

Width Chisel Length Chisel
Model No. LxWxH (mm) Pack qty Min Buy qty size / Wt (kg)
(mm) (mm)
7SCSH225 600x300x80 42 225 1 4 1.75
