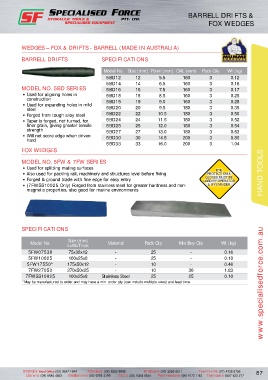

Page 97 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

BARRELL DRIFTS & FOX WEDGES – MUMME
BARRELL DRIFTS &
FOX WEDGES

WEDGES – FOX & DRIFTS - BARRELL (MADE IN AUSTRALIA)

BARRELL DRIFTS SPECIFICATIONS

Model No. size (mm) Point (mm) OAL (mm) Pack qty Wt (kg)
5BD12 12 5.5 160 3 0.12
5BD14 14 6.5 160 3 0.16
MODEL NO. 5BD SERIES 5BD16 16 7.5 160 3 0.17
• Used for aligning holes in 5BD18 18 8.5 160 3 0.25
construction 5BD19 19 9.0 160 3 0.28
• Used for expanding holes in mild
steel 5BD20 20 9.5 180 3 0.35
• Forged from tough alloy steel 5BD22 22 10.5 180 3 0.50
• Taper is forged, not turned, for 5BD24 24 11.5 180 3 0.52
finer grain, giving greater tensile 5BD25 25 12.0 180 3 0.54
strength 5BD27 27 13.0 180 3 0.63
• Will not score edge when driven 5BD30 30 14.5 200 3 0.80
hard
5BD33 33 16.0 200 3 1.04
FOX WEDGES

MODEL NO. 5FW & 7FW SERIES
• Used for splitting mating surfaces EYE
• Also used for packing rail, machinery and structures level before fixing PROTECTION & HAND TOOLS
GLOVES MUST BE
• Forged & ground blade with fine edge for easy entry USED BY OPERATOR
• (7FWSS10025 Only) Forged from stainless steel for greater hardness and non- & BYSTANDER
magnetic properties, also good for marine environments

SPECIFICATIONS

size (mm)
Model No. LxWxThick Material Pack qty Min Buy qty Wt (kg)
5FW07538 75x38x12 - 25 - 0.16
5FW10025 100x25x8 - 25 - 0.10
5FW17550* 175x50x12 - 10 - 0.46
7FW27050 270x50x25 - 10 30 1.83
7FWSS10025 100x25x8 stainless steel 25 25 0.10
*May be manufactured to order and may have a min. order qty (can include multiple sizes) and lead time. www.specialisedforce.com.au
