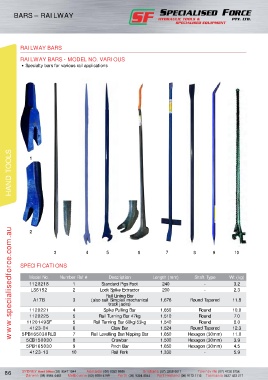

Page 96 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

BARS – RAILWAY
BARS – RAILWAY

RAILWAY BARS

RAILWAY BARS - MODEL NO. VARIOUS
• specialty bars for various rail applications

HAND TOOLS 1

www.specialisedforce.com.au
2

3 4 5 6 7 8 9 10

SPECIFICATIONS

Model No. Number Ref # Description Length (mm) shaft Type Wt (kg)
1120218 1 standard Pigs Foot 240 - 3.2
LS6152 2 Lock spike Extractor 200 - 2.3
Rail Lining Bar
A17B 3 (also suit simplex mechanical 1,676 Round Tapered 11.8
track jacks)
1120221 4 spike Pulling Bar 1,650 Round 10.0
1120225 5 Rail Turning Bar 47kg 1,510 Round 7.0
1120149SF 5 Rail Turning Bar 60kg/53kg 1,540 Round 8.0
4123-04 6 Claw Bar 1,524 Round Tapered 12.3
5PB165030RLB 7 Rail Levelling Bar/Nipping Bar 1,650 Hexagon (30mm) 11.0
5CB150030 8 Crowbar 1,500 Hexagon (30mm) 3.9
5PB165030 9 Pinch Bar 1,650 Hexagon (30mm) 4.5
4123-13 10 Rail Fork 1,330 - 5.9
